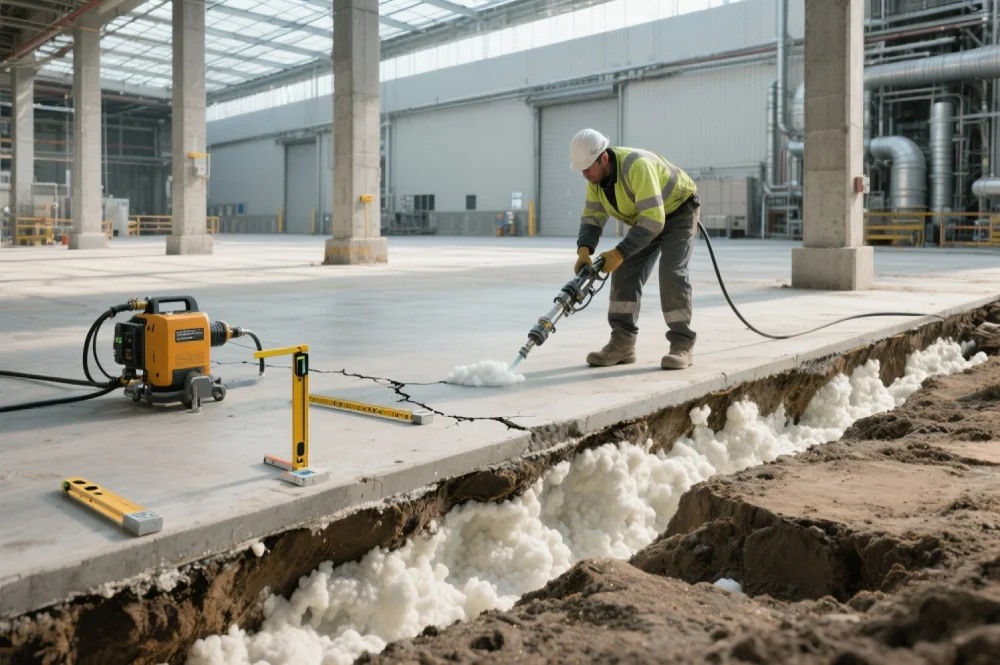

Why Foam Injection Reduces Settlement Risk

Why Foam Injection Reduces Settlement Risk

Alison R. Sinclair | 22 May 2025

Polyurethane foam injection reduces settlement risk by permanently filling subsurface voids, densifying unstable soils, and creating a lightweight yet high-strength substrate that prevents future compression—addressing root causes rather than symptoms while adding minimal load to already compromised bearing materials.

Industrial infrastructure is constantly threatened by settlement issues stemming from soil erosion, inadequate compaction, and void formation beneath critical load-bearing surfaces. Foundation repair technologies must address these underlying conditions to prevent recurring failures. Polyurethane foam injection eliminates settlement pathways through controlled chemical expansion that penetrates soil voids, binds particles, and establishes stable support matrices. This analysis examines the mechanisms by which foam injection prevents settlement across municipal treatment facilities, transportation infrastructure, and industrial floor systems.

Key Takeaways

  • Void filling prevents settlement progression: Polyurethane foam expands to fill subsurface cavities completely, eliminating spaces where soil particles can migrate and preventing the cascading void formation that causes accelerating settlement in untreated areas.
  • Soil densification increases bearing capacity: Foam expansion compresses surrounding soil particles, reducing void ratios and creating denser substrate with improved load-bearing characteristics that resist future compression under sustained structural loads.
  • Lightweight material prevents additional stress: At 2-4 pounds per cubic foot, polyurethane adds negligible weight compared to 100-150 pound cement slurries, avoiding the self-defeating cycle where repair materials exceed compromised soil capacity.
  • Moisture barrier eliminates erosion pathways: Hydrophobic closed-cell foam structure prevents water infiltration that otherwise transports soil particles, cutting off the primary mechanism causing settlement in facilities with drainage challenges or high water tables.
  • Immediate load capacity stops ongoing movement: 90 percent strength development within 15 minutes allows structures to resume full loading immediately, preventing continued settlement during extended cure periods required by traditional methods.
  • Permanent stability reduces lifecycle costs: Chemical inertness and structural permanence eliminate repeat interventions every 2-5 years typical of erosion-prone repair materials, converting settlement from recurring maintenance expense to single capital investment.

Settlement Mechanisms in Infrastructure Foundations

Foundation settlement occurs through three distinct processes that compromise structural stability. Immediate settlement happens when applied loads exceed soil bearing capacity, causing instant compression. This occurs at construction completion when structural weight first transfers to supporting soils.

Consolidation settlement develops gradually as water expels from saturated fine-grained soils under sustained pressure. Clay and silt layers compress over months or years as pore water migrates through restricted drainage paths. The process continues until excess pore pressure dissipates completely.

Secondary compression represents long-term settlement from soil particle rearrangement under constant load. This creep continues indefinitely at diminishing rates, particularly in organic soils and highly plastic clays. Infrastructure built on deep fills experiences secondary compression for decades after construction.

Differential settlement creates the most severe structural consequences. When foundation sections settle at varying rates, structures experience torsional stresses that crack concrete, distort steel frames, and damage equipment mountings. Manufacturing facilities with precision machinery cannot tolerate differential movement exceeding tight tolerances.

Common settlement triggers include:

  • Poor compaction during backfill operations leaving high void ratios
  • Groundwater flow eroding fine particles from beneath foundations
  • Freeze-thaw cycles degrading soil structure in cold climates
  • Decomposition of organic materials creating new subsurface voids
  • Vibration from traffic or equipment densifying loose granular soils

Understanding these mechanisms reveals why surface-level repairs fail. Methods that don't address subsurface void formation or soil density simply delay inevitable settlement recurrence.

Void Formation and Progressive Settlement

Voids beneath foundations develop through multiple pathways that compound over time. Water flowing through soil matrix transports fine particles, gradually creating cavities. This erosion accelerates once initial voids form, as enlarged flow channels concentrate hydraulic forces.

Inadequate compaction during construction leaves air pockets between soil particles. These voids compress under structural loads, causing settlement proportional to void volume. Facilities built on poorly compacted fill experience ongoing settlement as loose soil densifies naturally over 5 to 10 years.

Plumbing leaks saturate localized soil zones, washing material away through drainage paths. A single pipe failure can erode cubic yards of soil before detection. The resulting void causes sudden settlement when overlying concrete loses support.

Tree root decay creates voids as organic matter decomposes. Roots once providing soil structure leave hollow channels when they decompose. Facilities built near removed vegetation face settlement years after clearing as root systems deteriorate completely.

Karst geology develops voids through limestone dissolution. Acidic groundwater gradually enlarges fractures into cavities that collapse under surface loads. Areas underlain by soluble bedrock require continuous settlement monitoring despite surface soil appearing stable.

Void SourceFormation RateTypical Void SizeSettlement PatternDetection Difficulty
Soil ErosionMonths to years1-10 cubic feetGradual, progressiveModerate - visible surface depression
Poor CompactionImmediate (at construction)Distributed small voidsContinuous over 5-10 yearsHigh - no visible evidence until settlement
Plumbing LeaksDays to weeks5-50 cubic feetSudden, localizedLow - water damage visible
Root Decay2-8 years0.5-5 cubic feet per rootDelayed, scatteredHigh - underground process
Karst DissolutionDecades to centuries10-1000+ cubic feetCatastrophic collapseVery high - deep subsurface
Freeze-Thaw CyclingSeasonalMicro-voids (<0.1 cu ft)Gradual, seasonal variationModerate - surface cracking

Progressive void enlargement explains why settlement accelerates without intervention. Initial subsidence creates stress concentrations that fracture surrounding soil, propagating failure through previously stable zones.

Polyurethane Foam Expansion Mechanics

Polyurethane foam injection operates through precisely controlled chemical reactions. Two liquid components—polyol and isocyanate—mix at injection nozzles and begin expanding immediately upon contact. The reaction generates closed-cell foam with densities ranging from 2 to 4 pounds per cubic foot.

Expansion and Distribution Characteristics

Expansion ratios reach 15 to 20 times liquid volume depending on formulation. This allows small injection quantities to fill large void spaces completely. Technicians calculate foam requirements based on void volume estimates from ground-penetrating radar or probing.

Reaction timing varies from 5 to 90 seconds based on catalyst selection and material temperature. Fast-reacting formulations suit shallow injections where foam reaches target depth quickly. Slower reactions allow deeper penetration before expansion begins, ensuring uniform distribution in complex void geometries.

Foam follows paths of least resistance through soil matrix, filling voids before compressing denser surrounding material. This preferential flow ensures complete void filling rather than creating localized high-pressure zones that could damage structures.

Curing and Strength Development

Curing completes within 15 to 30 minutes, achieving 90 percent of maximum compressive strength. Full cure occurs within 24 hours, though structures can resume loading immediately after injection based on the rapid strength development.

The closed-cell structure provides key performance advantages. Individual cells remain isolated, preventing moisture penetration and maintaining structural integrity despite groundwater exposure. Cell walls resist compression, distributing loads across the foam mass rather than collapsing under pressure.

Compressive strength ranges from 80 to 120 PSI for structural foam formulations. This exceeds requirements for most pavement and floor slab applications where bearing pressures rarely surpass 50 PSI. Higher-strength variants reach 200 PSI for specialized heavy-load scenarios.

Void Filling Prevents Settlement Pathways

Complete void filling eliminates spaces where soil particles migrate under hydraulic or gravitational forces. When voids exist, flowing water transports fine particles into cavities, gradually enlarging them. Foam injection blocks this process by occupying void space with incompressible material.

The foam's expansion ensures thorough filling of complex void geometries. Irregular cavities created by erosion contain narrow channels and enlarged chambers. Liquid foam penetrates narrow openings before expanding to fill larger spaces, achieving complete coverage impossible with pumped slurries.

Bonding to surrounding soil creates a composite matrix stronger than native material. The foam adheres to soil particles at contact surfaces, forming integrated masses that resist separation. This binding prevents soil from sloughing into new voids that might form adjacent to repaired areas.

Immediate support prevents continued settlement during cure periods. Traditional cement-based repairs require 24 to 72 hours before loading, during which settlement continues. Foam's rapid strength development stops movement within minutes of injection.

Permanent void occupation prevents reformation through erosion or compaction. The foam's chemical stability and moisture resistance mean filled voids remain occupied indefinitely. Unlike organic fillers that decompose or cement that erodes, polyurethane maintains volume and integrity for decades.

Void filling effectiveness varies by soil type:

  • Sandy soils: Excellent penetration and complete filling due to high permeability
  • Clay soils: Good filling of macro-voids; limited penetration of fine-grained matrix
  • Gravel: Complete filling with minimal foam loss to surrounding material
  • Mixed soils: Variable results depending on predominant particle size and layering
  • Organic soils: Effective but may require additional foam volume due to compressibility

The foam's ability to fill voids smaller than injection hole diameter proves critical. Erosion channels often measure inches in cross-section despite creating settlement over square feet of slab area. Foam migration through these channels provides comprehensive coverage.

Soil Densification Through Controlled Expansion

Foam expansion exerts controlled pressure on surrounding soil, compressing particles into denser configurations. This mechanical densification increases soil bearing capacity by reducing void ratios and improving particle-to-particle contact.

The process differs fundamentally from compaction with heavy equipment. Surface compaction cannot reach depths where erosion creates settlement-causing voids. Foam injection places densification force precisely at problem depths, addressing conditions inaccessible to conventional methods.

Pressure monitoring during injection prevents over-densification that could damage structures. Technicians observe injection pressure and structural movement continuously, modulating foam volume to achieve target densification without excessive force.

Densified soil exhibits improved engineering properties. Bearing capacity increases proportionally to density improvement, allowing previously unstable soil to support design loads. Permeability decreases, reducing erosion rates and improving long-term stability.

The densification extends beyond immediate injection points. Foam expansion creates pressure waves that compact soil in spherical zones around injection locations. Strategic injection point placement ensures overlapping densification zones for comprehensive soil improvement.

Soil PropertyBefore TreatmentAfter Foam DensificationImprovement Factor
Void Ratio0.8-1.20.4-0.62x reduction
Bearing Capacity1,000-2,000 PSF3,000-6,000 PSF3x increase
PermeabilityHigh (erosion-prone)Low (erosion-resistant)5-10x reduction
Compressive Strength5-15 PSI15-40 PSI3x increase
Settlement PotentialHigh (5-10% strain)Low (<1% strain)10x reduction
Moisture ContentVariableStabilizedConsistent performance

Soil improvement persists indefinitely after foam curing. The foam matrix prevents particle rearrangement that would allow density to decrease over time. This permanent enhancement contrasts with dynamic compaction that loosens gradually under vibration or moisture changes.

Load Distribution and Bearing Capacity Enhancement

Polyurethane foam creates continuous support planes that distribute structural loads across wider soil areas. Point loads from footings or equipment mountings spread through foam layers before reaching native soil, reducing localized stress concentrations.

This load distribution prevents punching failures where concentrated forces exceed local bearing capacity. Industrial facilities with heavy machinery experience punching when equipment feet create high-pressure zones in subgrade. Foam injection beneath these points spreads loads to prevent local failure.

Structural Performance Under Loading

The foam's compressive strength supports direct bearing loads while remaining lightweight. At 80 to 120 PSI compressive capacity, structural foam carries typical floor loading without compression. This eliminates concerns about foam crushing under normal service conditions.

Elastic properties allow foam to deform slightly under load, then recover when loads remove. This behavior prevents stress concentrations that occur with rigid materials unable to accommodate minor ground movements. The foam acts as a flexible buffer between structures and dynamic soil conditions.

Load-bearing capacity reaches 5,000 to 10,000 pounds per cubic foot for high-density formulations. This exceeds requirements for most infrastructure applications, providing safety factors ensuring performance under peak loads. Specialized formulations achieve even higher capacities for extreme scenarios.

Uniform support prevents differential settlement between adjacent foundation elements. When foam creates consistent bearing conditions across foundation areas, loads distribute evenly and settlement occurs uniformly. This eliminates the torsional stresses causing most structural damage.

Moisture Barrier Protection Against Erosion

Closed-cell foam structure prevents water infiltration that drives soil erosion. Each foam cell remains isolated from adjacent cells, creating millions of sealed compartments impervious to moisture migration. This eliminates hydraulic flow paths that transport soil particles.

Hydrophobic chemistry actively repels water rather than simply resisting penetration. Water contacting foam surfaces beads and drains away instead of absorbing into the material. This property remains effective despite continuous groundwater exposure or periodic flooding.

The moisture barrier effect extends to surrounding soil through permeability reduction. Foam filling soil voids blocks preferred flow paths that concentrated erosion. Water must travel through denser soil matrix at reduced velocities insufficient for particle transport.

Freeze-thaw protection prevents seasonal settlement in cold climates. Water trapped in soil voids expands during freezing, creating pressures that disrupt soil structure. Foam occupation of voids eliminates freezing water and prevents frost heave damage.

Long-term moisture stability ensures protection continues indefinitely. Laboratory tests demonstrate polyurethane maintains properties after five years continuous seawater submersion. Field installations from the 1990s show no degradation despite decades of groundwater exposure.

Moisture resistance mechanisms:

  • Closed-cell structure prevents interstitial water flow
  • Hydrophobic surface chemistry repels liquid water
  • Chemical inertness prevents reaction with dissolved minerals
  • Impermeability blocks capillary rise from water tables
  • Dimensional stability maintains barrier despite moisture cycling

Facilities with high water tables benefit particularly from moisture barrier protection. Continuous groundwater flow creates relentless erosion pressure that degrades water-permeable repair materials. Foam's impermeability stops this degradation mechanism completely.

Comparison: Foam Injection vs. Traditional Settlement Prevention

Prevention MethodVoid Filling EffectivenessSoil DensificationLoad BearingMoisture ResistanceInstallation SpeedService LifeWeight Added
Polyurethane FoamExcellent - complete fillingHigh - controlled expansion80-120 PSIExcellent - hydrophobic4-8 hours20+ years2-4 lbs/cu ft
Cement GroutingGood - fills major voidsModerate - hydraulic pressure400-2,400 PSIPoor - erosion-prone1-2 days2-5 years100-150 lbs/cu ft
Compaction GroutingN/A - displaces soilVery High - mechanicalVariableFair - depends on grout2-5 days10-15 years120-140 lbs/cu ft
Chemical GroutingExcellent - permeates voidsLow - chemical binding20-60 PSIExcellent - varies by type1-3 days15-25 years8-12 lbs/cu ft
Deep Soil MixingN/A - soil replacementVery High - completeHigh - cement columnsGood - reduced permeability5-14 days25+ yearsSignificant
VibrocompactionN/A - densifies onlyHigh - mechanicalImproved native soilNo change3-7 daysPermanentNone
Helical PiersN/A - bypasses soilN/A - structural transfer10,000-20,000 lbs/pierN/A - steel elements3-10 days50+ yearsModerate

Traditional methods address settlement through fundamentally different approaches. Compaction grouting displaces soil to densify surrounding material but doesn't fill existing voids. Chemical grouting penetrates soil but lacks lifting capability for settled structures.

Deep soil mixing creates cement columns but requires extensive site access and disrupts operations. Vibrocompaction works only in granular soils and cannot address clay settlement. Helical piers provide structural support without improving underlying soil conditions.

Polyurethane foam uniquely combines void filling, soil densification, and structural support in single operations. This comprehensive approach addresses multiple settlement mechanisms simultaneously rather than targeting individual failure modes.

Case Applications: Industrial Settlement Prevention

Manufacturing Facility Floor Leveling

Manufacturing facilities require level floors supporting precision equipment on tight tolerances. A pharmaceutical production plant experienced differential settlement from soil erosion beneath warehouse floors. Settlement exceeded allowable limits for automated guided vehicles requiring level surfaces within 1/4 inch across 50-foot spans.

Polyurethane foam injection addressed erosion voids while releveling floors to specification. Technicians injected foam through grid patterns, monitoring elevation changes with laser levels. The facility resumed operations within hours of completion, avoiding extended production shutdowns.

Water Treatment Plant Stabilization

Water treatment plants face unique settlement challenges from saturated soil conditions and vibration from pumping equipment. A municipal wastewater facility experienced clarifier settlement from inadequate compaction of backfill around concrete tanks. Continued movement threatened structural integrity and treatment process efficiency.

Deep foam injection densified backfill and filled voids created by soil consolidation. The treatment prevented additional settlement while avoiding the operational disruption of draining tanks for traditional underpinning. Settlement monitoring confirmed stability restoration.

Highway Bridge Approach Repair

Highway approaches to bridge structures commonly settle from traffic vibration and poor compaction in approach embankments. A state DOT addressed recurring bump development at bridge transitions where approach slabs settled relative to abutments. The bump created safety hazards and accelerated pavement damage.

Foam injection filled voids beneath approach slabs and densified embankment soils. The lightweight material prevented additional stress on already unstable fills. Traffic resumed immediately after injection, eliminating the extended lane closures traditional repairs would require.

Airport Apron Settlement Control

Airport aprons supporting heavy aircraft require exceptional settlement control. An air cargo facility experienced slab settlement from soil erosion around underground utilities. Settlement created unacceptable surface irregularities for cargo loading equipment.

Targeted foam injection around utility trenches filled erosion voids without disturbing operations. The rapid cure time allowed aircraft operations to continue with minimal disruption. Five years post-repair monitoring shows no renewed settlement.

Conclusions

Polyurethane foam injection prevents settlement through integrated mechanisms addressing root causes rather than symptoms. Complete void filling eliminates migration pathways, soil densification improves bearing capacity, and moisture barriers stop erosion—all while adding negligible weight to compromised substrates.

The method's 15-minute cure time provides immediate load capacity that prevents ongoing movement during extended traditional cure periods. Chemical inertness ensures permanent stability without the 2-5 year repeat interventions required by erosion-prone alternatives.

This converts settlement from recurring expense to single capital investment. For industrial facilities, transportation infrastructure, and municipal systems where settlement threatens operational continuity, foam injection delivers comprehensive prevention through material science specifically engineered for subsurface stabilization demands.

Contact us to evaluate how foam injection addresses settlement risks at your facility.

At Superior PolyLift™, our engineering team applies polymer science to industrial settlement prevention across municipal treatment facilities, transportation infrastructure, and manufacturing operations. We deliver foam injection solutions backed by subsurface analysis, load calculations, and long-term monitoring protocols that ensure settlement control meets operational requirements for decades.

FAQs
Foam injection combines void filling, soil densification, and moisture barriers in single operations while adding only 2-4 pounds per cubic foot compared to 100-150 pound cement slurries. This lightweight approach prevents additional stress on compromised soils that causes traditional repairs to fail within 2-5 years, while foam's hydrophobic structure eliminates erosion pathways driving recurrent settlement.
Polyurethane foam halts active settlement by filling voids causing soil migration and densifying loose material supporting structures. The 15-minute cure time stops movement immediately rather than allowing continued settlement during 24-72 hour traditional cure periods. However, ongoing settlement from external causes like active plumbing leaks requires source correction alongside foam stabilization.
Sandy and gravelly soils benefit maximally from foam injection due to high permeability allowing complete void penetration and effective densification. Clay soils show good results for macro-void filling though fine-grained matrix limits penetration depth. Mixed soils perform variably depending on predominant particle sizes, with stratified conditions requiring customized injection strategies.
Polyurethane foam provides permanent settlement prevention through chemical inertness and structural stability lasting 20-plus years without degradation. Laboratory testing shows no strength loss after five years continuous seawater submersion, and field installations from the 1990s continue performing without renewed settlement. Chemical stability prevents the erosion and decomposition causing traditional material failures.
Foam injection performs excellently in saturated soils through hydrophobic chemistry that repels water and specialized hydro-insensitive formulations reacting with moisture during curing. The closed-cell structure prevents water infiltration affecting performance, making foam ideal for facilities with high water tables, poor drainage, or submarine applications where traditional cement-based methods erode rapidly.
Initial monitoring involves baseline elevation surveys immediately post-injection followed by measurements at 30, 90, and 180 days to confirm stability. Most facilities transition to annual monitoring after first-year stability confirmation. Critical infrastructure may require continuous automated monitoring through embedded sensors, though foam's permanent nature typically eliminates ongoing settlement requiring intervention.
Foam injection reduces but doesn't eliminate settlement from expansive clay shrink-swell cycles. The foam fills voids created during shrinkage and provides some confinement limiting expansion, but cannot completely counteract volumetric changes from moisture fluctuations. Facilities on highly expansive clays may require foam stabilization combined with moisture control systems or structural underpinning for complete settlement prevention.
Foam injection fills existing voids directly while compaction grouting displaces soil to densify surrounding material without void filling capability. Foam adds 2-4 pounds per cubic foot versus 120-140 for compaction grout, preventing additional settlement from repair material weight. Installation completes in hours versus days, and foam's 20-year service life exceeds compaction grouting's 10-15 year typical performance.
Required foam thickness varies with void depth and soil conditions, typically ranging from 6 inches for shallow erosion voids to 10 feet for deep utility trench settlements. Technicians calculate requirements through void volume assessment using ground-penetrating radar or probing, ensuring sufficient material for complete filling and adequate densification of surrounding soils.
Foam injection prevents settlement from soil erosion, void formation, and inadequate compaction permanently through comprehensive void filling and soil densification. However, new settlement from external causes—continuing utility leaks, adjacent excavation, or seismic activity—requires separate intervention. The treatment addresses existing conditions and prevents recurrence of treated failure modes rather than protecting against all possible future soil movements.
