Step-by-Step Guide to Polyurethane Void Filling

Professional polyurethane void filling follows systematic procedures from initial site assessment through final verification, utilizing specialized equipment and precise injection protocols to achieve complete subsurface stabilization in industrial, municipal, and commercial infrastructure applications.

Subsurface voids compromise structural integrity across treatment facilities, manufacturing plants, transportation infrastructure, and commercial properties. Successful remediation requires methodical execution of assessment, preparation, injection, and verification procedures. Each phase demands technical expertise ensuring foam reaches all cavity locations while preventing over-pressurization or material waste.

Void filling projects range from small isolated cavities beneath equipment pads to extensive erosion networks under facility floors. Understanding proper sequencing, equipment operation, and quality control measures enables consistent results across diverse applications. This guide details professional procedures delivering complete void occupation and permanent stabilization.

Key Takeaways

• Site Assessment: Comprehensive evaluation using GPR, probing, and load analysis identifies void locations, dimensions, and structural conditions before injection operations commence.
• Equipment Preparation: Dual-component injection systems require proper calibration, material conditioning to 80-100°F, and pressure monitoring equipment for controlled foam delivery.
• Injection Sequence: Strategic drilling patterns establish access points, followed by systematic bottom-up injection building overlapping support zones ensuring complete cavity coverage.
• Pressure Control: Real-time monitoring maintains injection pressures between specified limits preventing structural damage while confirming complete void filling and soil densification.
• Quality Verification: Post-injection testing including pressure analysis, volume reconciliation, and elevation surveys validates repair effectiveness and documents project completion.
• Safety Protocols: Personal protective equipment, area isolation, and material handling procedures protect personnel while preventing environmental release during all operational phases.

Phase 1: Pre-Injection Assessment

Thorough evaluation establishes project parameters and identifies conditions affecting injection success.

Site Investigation

Subsurface exploration determines void characteristics guiding equipment selection and material requirements. Ground-penetrating radar scans map cavity locations, approximate dimensions, and depths below grade without invasive excavation disrupting facility operations.

Physical probing through strategically drilled test holes confirms GPR findings and measures precise void depths. Operators insert steel rods or probes through 5/8-inch holes, recording sudden resistance drops indicating cavity boundaries. Systematic testing across suspected areas builds detailed void profiles.

Soil sampling identifies formation types affecting foam migration patterns:

• Sandy soils with high permeability allow extensive foam penetration
• Clay formations restrict foam primarily to void spaces
• Mixed soils require customized injection strategies
• Moisture content influences foam expansion characteristics

Structural Load Analysis

Understanding surface loads determines required foam density and injection pressures achieving adequate support.

Equipment foundations require analysis of static weights, dynamic operational forces, and mounting configurations. Manufacturing machinery generating vibration needs substrate stabilization without creating rigid connections transmitting forces into building structures.

Floor slab evaluations assess:

• Uniformly distributed loads from storage or operational activities
• Concentrated point loads from equipment mounting locations
• Linear loads along racking systems or partition walls
• Thermal expansion requirements from temperature-controlled environments

This data establishes foam specifications ensuring adequate compressive strength supporting actual loading conditions without excessive material costs from over-design.

Access Planning

Operational constraints at active facilities demand creative approaches achieving complete void coverage from limited penetration points.

Manufacturing plants rarely offer unrestricted floor access around installed equipment. Injection point layouts must account for clearance requirements, utility locations, and production schedules restricting work areas. Strategic placement enables foam migration reaching all cavity sections from available drilling locations.

Coordination with facility operations identifies acceptable work windows:

• Shift changes providing brief access to production areas
• Scheduled maintenance periods allowing extended work duration
• Weekend operations when reduced staffing permits larger work zones
• Phased approaches treating sections sequentially maintaining partial facility operation

Phase 2: Equipment Setup and Material Preparation

Proper system configuration ensures consistent foam delivery meeting project specifications throughout injection operations.

Injection System Components

Professional void filling utilizes dual-component pumping equipment precisely metering polyol and isocyanate components. High-pressure pumps deliver materials through heated hoses maintaining optimal flow temperatures. Metering accuracy within ±2% ensures consistent 1:1 volumetric ratios producing foam with specified properties.

Primary system elements include:

• Material storage drums or totes with capacity matching project volumes
• Temperature control systems maintaining components at 80-100°F
• Dual-component proportioning pumps with pressure gauges
• Heated hoses preventing temperature loss during transfer
• Injection guns with mixing nozzles combining components immediately before discharge
• Pressure monitoring equipment tracking real-time injection parameters

Portable systems suitable for smaller projects mount on trucks or trailers. Large installations may utilize stationary equipment with extended hose runs reaching distant injection points.

Material Conditioning

Temperature significantly affects foam reaction rates and expansion characteristics requiring careful environmental control.

Components stored below optimal range require heating before use. Barrel warmers maintain consistent temperatures in material containers. Circulation systems pump material through heaters bringing bulk quantities to specification before injection commences.

Material temperature verification occurs at multiple points:

• Drum temperature measured at storage containers
• Hose temperature monitored at pump discharge
• Gun temperature confirmed at mixing nozzle location

Cold weather operations demand additional precautions. Insulated hoses, increased heater capacity, and cold-weather foam formulations maintain proper reaction kinetics when substrate temperatures drop below standard ranges.

Safety Equipment Deployment

Personnel protection and site isolation prevent exposure incidents and environmental releases.

Required personal protective equipment includes:

• Chemical-resistant gloves protecting hands from uncured components
• Safety glasses with side shields preventing eye contact
• Respirators when working in confined spaces or poorly ventilated areas
• Protective coveralls preventing skin contact with reactive materials

Work area isolation uses barriers, signage, and traffic control preventing unauthorized access during injection operations. Containment materials address potential spills during material transfer or equipment connections.

Phase 3: Drilling and Injection Point Installation

Strategic penetration placement provides access to void networks while minimizing structural disruption.

Hole Drilling Procedures

Specialized concrete drilling equipment creates injection access through floor slabs or foundation elements. Rotary hammer drills with 5/8-inch carbide bits penetrate reinforced concrete efficiently. Operators maintain perpendicular alignment ensuring holes reach intended depths without deviation.

Drilling sequence considerations:

• Mark injection point locations using grid patterns or void mapping coordinates
• Drill to calculated depths based on void location and slab thickness
• Clean holes removing concrete dust and debris
• Verify depth measurements confirming penetration reaches void spaces
• Install injection ports or packers creating sealed pathways for foam delivery

Dust collection systems capture concrete particles during drilling operations. This proves critical in food processing facilities, clean rooms, or occupied spaces where particulate contamination creates problems.

Grid Pattern Development

Systematic hole spacing ensures complete void coverage accounting for foam migration characteristics in specific soil conditions.

Standard spacing ranges from 18 to 48 inches on center. Smaller voids beneath equipment foundations require tighter patterns ensuring uniform support across mounting areas. Large erosion cavities in permeable soils allow wider spacing as foam migrates extensively from each injection point.

Layout strategies include:

• Perimeter holes containing foam within treatment boundaries
• Interior grid points filling central void volumes
• Offset patterns in alternating rows maximizing coverage
• Concentrated spacing near equipment locations requiring precise support

Injection sequence typically progresses from perimeter toward center preventing foam escape beyond intended treatment zones.

Phase 4: Foam Injection Operations

Controlled material delivery fills voids completely while preventing over-pressurization or structural damage.

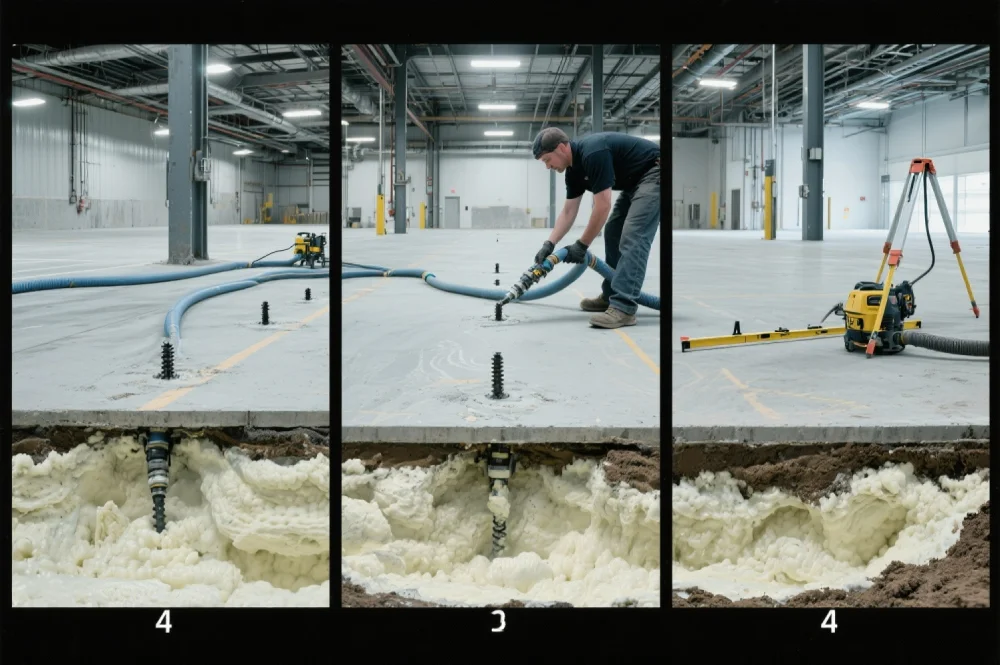

Bottom-Up Injection Sequence

Systematic foam placement builds support from maximum depth upward ensuring complete cavity occupation.

Initial injections target deepest void locations. Technicians insert injection tubes or hoses through drilled holes reaching calculated depths. Foam delivery begins at bottom elevations, working upward in controlled lifts as material fills progressive levels.

This approach prevents:

• Foam channeling along preferred paths leaving unfilled pockets
• Premature sealing of upper void sections trapping air below
• Uncontrolled pressure buildup from blocked expansion routes
• Incomplete filling of irregular cavity geometries

Operators monitor foam return at hole openings indicating void saturation at specific depths. Continued injection after backpressure develops confirms complete filling before advancing to next elevation.

Pressure Monitoring and Control

Real-time data collection guides injection rates and volumes achieving project objectives without exceeding safe limits.

Gauge readings indicate subsurface conditions:

Sudden pressure drops signal foam breakthrough into larger connected voids or escape through unintended pathways. Operators adjust injection points addressing newly discovered cavity extensions.

Volume Reconciliation

Material consumption tracking compares actual usage against calculated void volumes validating complete treatment.

Pre-injection estimates based on GPR mapping and probing data establish expected foam requirements. Flow meters record actual consumption during operations. Significant variances between estimates and actuals trigger investigation:

• Under-consumption suggests incomplete filling or foam escape requiring additional injection
• Expected consumption validates design assumptions about void geometry
• Over-consumption indicates larger voids than anticipated or extensive soil penetration

Documentation includes:

• Injection point locations and depths
• Material volumes delivered at each location
• Pressure readings throughout injection cycles
• Time stamps tracking injection duration and sequencing

Phase 5: Post-Injection Procedures

Completion activities restore surface conditions and verify treatment effectiveness before final acceptance.

Hole Sealing and Surface Restoration

Injection points require proper closure matching original surface characteristics.

Patching procedures vary by surface type and aesthetic requirements. Industrial floors may accept simple cement patches matching concrete color. Commercial facilities with decorative finishes need color-matched repair materials blending invisibly with surrounding surfaces.

Standard patching sequence:

• Remove injection ports or packers from holes
• Clean hole perimeters removing foam residue or debris
• Fill holes with appropriate patching compound
• Trowel smooth matching surrounding surface profile
• Allow cure before subjecting to traffic or loads

Some applications use quick-set patching materials enabling immediate area use. Others specify standard concrete requiring overnight cure before resuming operations.

Elevation Verification

Precision surveys confirm achievement of specified grade targets or document actual lift achieved during void filling operations.

Laser levels establish reference points before injection begins. Post-treatment surveys measure final elevations comparing results against project objectives. This data validates:

• Equipment foundations restored to specified tolerances
• Floor slabs returned to original grades
• Differential settlement corrected across treatment areas
• No excessive lift creating new trip hazards or alignment issues

Survey documentation provides permanent records supporting warranty claims and future condition assessments.

Quality Control Testing

Verification procedures confirm foam distribution, bonding characteristics, and performance meeting specification requirements.

Core sampling through treated areas retrieves material samples for laboratory analysis. Cores reveal whether foam completely filled intended voids and achieved proper density throughout the injection zone. Visual inspection identifies bonding quality between foam and surrounding soil or concrete.

Load testing on representative areas measures bearing capacity improvements. Plate load tests apply controlled forces measuring deflection under known loads. Results compare against pre-repair baseline data and design requirements validating adequate support capacity.

Equipment Types and Selection Criteria

Different project scales and site conditions require varying equipment configurations achieving optimal results.

Selection factors beyond capacity include:

• Metering accuracy requirements for critical applications
• Temperature control capabilities for varying site conditions
• Pressure capacity for deep injection or dense soil penetration
• Mobility requirements for multi-location projects
• Operator skill levels and training available

Common Installation Challenges

Recognizing potential problems enables proactive solutions maintaining project schedules and quality outcomes.

Foam Migration Issues

Unexpectedly permeable soils allow excessive foam travel beyond intended treatment zones. Material appears at distant locations indicating interconnected pathways not revealed during assessment.

Mitigation strategies include:

• Reduce injection volumes per location spreading material across more points
• Use higher-density foam formulations with reduced expansion ratios
• Install temporary barriers blocking migration routes
• Inject perimeter containment foam before filling interior areas

Equipment Malfunctions

Pump failures, hose blockages, or mixing problems interrupt operations requiring field troubleshooting and repairs.

Common issues and solutions:

• Clogged mixing nozzles from premature reaction: Replace nozzles, verify material temperatures
• Inconsistent foam quality from ratio imbalance: Recalibrate metering pumps, check component levels
• Pressure fluctuations from line restrictions: Inspect hoses for kinks, verify connections
• Temperature losses in cold weather: Add insulation, increase heater capacity

Maintaining spare components including nozzles, hoses, and seals minimizes downtime from equipment problems during critical injection phases.

Unexpected Void Extensions

Injection operations sometimes reveal cavity networks larger than assessment indicated requiring additional material and time.

Adaptive responses include:

• Expand injection grid adding points accessing newly discovered voids
• Increase material orders ensuring adequate supply for extended treatment
• Notify facility management about revised completion timelines
• Document additional work for proper billing and project records

Safety and Environmental Compliance

Proper handling procedures protect personnel while preventing environmental releases during all project phases.

Material Handling Protocols

Polyurethane components require careful management preventing exposure incidents and environmental contamination.

Storage requirements include:

• Maintain materials in original containers with intact labels
• Store in temperature-controlled environments preventing freezing or excessive heat
• Segregate polyol and isocyanate components preventing accidental mixing
• Provide secondary containment for drums or totes

Transfer procedures minimize spill risks. Sealed connections between containers and pumps prevent component release. Drip pans capture minor leaks during hose connections or equipment servicing.

Waste Management

Spent containers, contaminated materials, and cleanup waste require proper disposal following environmental regulations.

Empty drums may contain residual chemicals necessitating special handling. Mixing nozzles with cured foam attached go to industrial waste. Contaminated rags or absorbent materials from spill cleanup require disposal as chemical waste.

Documentation includes:

• Material safety data sheets for all components
• Waste manifests for disposal shipments
• Training records for personnel handling materials
• Spill response procedures and contact information

Conclusions

Successful polyurethane void filling requires systematic execution of assessment, preparation, injection, and verification procedures. Each phase builds upon previous steps ensuring complete cavity occupation while preventing common problems compromising project outcomes. Professional equipment operation, precise pressure control, and comprehensive quality verification deliver permanent stabilization meeting infrastructure performance requirements.

Understanding proper sequencing, material conditioning, and injection protocols enables consistent results across diverse applications from treatment facilities to manufacturing plants. The combination of technical expertise and methodical procedures produces cost-effective solutions addressing subsurface voids while maintaining facility operations throughout repair activities.At Superior PolyLift™, we utilize advanced injection equipment and systematic procedures delivering complete void filling for industrial and municipal infrastructure. Our certified technicians follow proven protocols ensuring predictable outcomes from initial assessment through final verification. Contact us to discuss void filling requirements at your facility.
