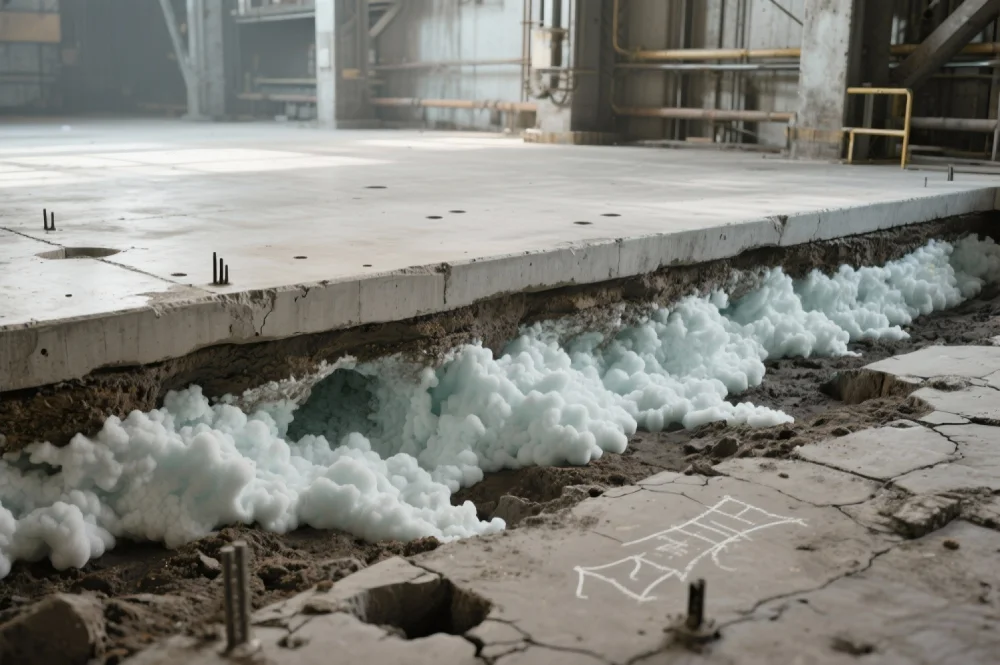

How Polyurethane Foam Expands to Fill Hidden Voids

Polyurethane foam expands 15 to 40 times its original liquid volume through controlled chemical reaction, following paths of least resistance to fill irregular subsurface voids completely while compacting surrounding soil and creating stable support masses beneath infrastructure.

Subsurface voids threaten infrastructure stability across municipal treatment facilities, industrial complexes, transportation corridors, and commercial properties. These cavities form from soil erosion, pipe failures, poor compaction, and natural geological processes. Traditional detection methods often miss irregularly shaped voids until surface settlement indicates advanced subsurface deterioration.

Void filling requires materials reaching complex geometries conventional grouts cannot penetrate. Polyurethane foam injection addresses this challenge through expansion mechanics enabling complete cavity occupation. Understanding the chemical processes, flow dynamics, and pressure relationships governing foam expansion enables proper application for diverse infrastructure void scenarios.

Key Takeaways

• Expansion Ratios: Polyurethane formulations achieve 15:1 to 40:1 expansion ratios depending on density requirements, completely filling voids conventional cement grouts cannot reach.
• Chemical Reaction: Two-component systems mix polyol and isocyanate at injection nozzles, initiating reactions creating closed-cell foam structure in controlled timeframes.
• Path Selection: Expanding foam follows least resistance routes through soil pores and void networks, filling irregular cavities before building pressure against confinement.
• Controlled Timing: Reaction rates range from 5 to 60+ seconds based on temperature and formulation, allowing depth-specific expansion control.
• Pressure Monitoring: Real-time pressure tracking prevents over-expansion damaging structures while ensuring complete void occupation and adequate soil densification.
• Temperature Dependency: Material temperature significantly affects reaction speed and expansion characteristics, requiring conditioning for optimal performance in varying site conditions.

Chemical Composition and Reaction Mechanics

The expansion process begins with two distinct liquid components reacting to form solid polyurethane foam.

Two-Component System

Polyurethane injection systems utilize separate polyol (Part A) and isocyanate (Part B) components stored in individual containers. These materials remain stable indefinitely when separated. Mixing occurs at the injection gun nozzle immediately before entering the substrate.

Key reaction characteristics include:

• 1:1 volumetric mixing ratio simplifies field application
• Polyol hydroxyl groups react with isocyanate NCO groups
• Urethane linkages form the polymer backbone structure
• Blowing agents generate gas bubbles driving expansion
• Reaction exotherm produces heat during polymer formation

Low-exotherm formulations designed for large volume applications limit temperature rise preventing material degradation. Standard formulations may reach 200-250°F during peak reaction, while low-exotherm versions stay below 150°F even in massive injection volumes.

Expansion Process Stages

Foam development progresses through distinct phases from injection through final cure. Cream time occurs within 10-20 seconds as initial mixing produces color change from brown to cream. Rise time brings rapid volume increase lasting 30-90 seconds as blowing agents generate cellular structure.

Gel time happens 60-180 seconds after mixing when foam reaches maximum volume and transitions from liquid to semi-solid state. Tack-free time occurs 3-8 minutes post-injection as surface becomes non-sticky. Full cure reaches final strength properties within 15-60 minutes, though 90% strength develops much faster.

Temperature dramatically affects these timelines. Material heated to 100-120°F reacts significantly faster than cold material at 50-60°F.

Void Detection and Mapping

Identifying subsurface cavities before injection ensures complete treatment and prevents material waste.

Ground Penetrating Radar

GPR systems transmit electromagnetic pulses into the ground, recording reflections from subsurface interfaces. Void spaces create distinct signatures on radar profiles. The air-filled cavity produces strong reflection contrasts against surrounding soil or fill materials.

GPR effectiveness varies with soil conditions:

• Clay soils with high moisture content limit penetration depths to 10-15 feet
• Dry sandy soils allow detection to 30+ feet
• Metal utilities create interference requiring careful interpretation
• Multiple scan lines build three-dimensional void models

This mapping identifies injection point requirements and estimates material volumes needed for complete filling.

Probing and Acoustic Methods

Physical probing provides direct measurement where access permits penetrating suspect areas. Steel rods or specialized probes inserted through drilled holes encounter sudden depth increases when reaching void spaces. Systematic probing across grid patterns maps void extents and irregular geometries.

Acoustic techniques detect voids through sound wave behavior. Impact-echo testing analyzes reflected waves from struck surfaces, identifying anomalies indicating subsurface cavities. Seismic methods measure wave velocity changes, as voids alter propagation characteristics compared to intact soil.

Foam Flow Patterns and Path Selection

Expanding foam navigates subsurface environments following predictable physical principles governing fluid movement through porous media.

Path of Least Resistance

Polyurethane enters voids as low-viscosity liquid before expansion initiates. The material flows through soil pores, fissures, and open channels seeking areas offering minimal flow resistance.

Soil permeability determines penetration patterns. Sandy soils with large pore spaces allow significant foam penetration beyond void boundaries. Clay soils with small pores restrict foam primarily to discrete void spaces. Gravelly materials permit extensive migration through interconnected voids between particles.

Strategic injection point placement accounts for anticipated flow patterns. Multiple injection locations ensure coverage when void geometry or soil conditions limit migration from single points.

Expansion Against Confinement

Foam generates substantial pressure as expansion encounters resistance from surrounding materials. Unconfined foam expands to maximum volume determined by formulation characteristics. Confined foam develops pressure against boundaries, compacting loose soil and lifting overlying structures when expansion force exceeds confinement resistance.

Controlled pressure application achieves desired outcomes:

• Low pressure indicates open space requiring continued injection
• Moderate pressure compacts loose surrounding soil increasing bearing capacity
• Higher pressure overcomes structural weight raising settled slabs
• Excessive pressure risks damaging utilities or cracking concrete

Real-time monitoring through pressure gauges guides injection rates and total volumes maintaining pressures within target ranges.

Expansion Ratios and Density Selection

Different foam formulations provide varying expansion characteristics suited to specific void-filling applications.

Higher density foams provide greater strength but expand less, requiring more material volume to fill equivalent void spaces. Lower density foams maximize void filling efficiency but offer reduced load-bearing capacity.

Temperature Effects on Expansion Performance

Material and substrate temperatures significantly influence foam reaction kinetics and final properties.

Temperature-Dependent Reaction Rates

Chemical reaction speed increases with temperature following established thermodynamic principles. Material heated to 100-120°F reacts 2-3 times faster than the same formulation at 60-70°F.

Material conditioning addresses temperature variations through heated storage, barrel warmers, and heated hoses. Cold-weather formulations modify chemistry to maintain reactivity at reduced temperatures, functioning adequately at substrate temperatures down to 40°F where standard formulations would fail.

Moisture Interaction

Polyurethane reacts with water, making moisture content a critical consideration affecting expansion characteristics. Hydrophobic formulations designed for void filling actively repel water while maintaining expansion capacity in wet conditions.

Contact with moisture actually enhances foam volume through additional blowing action. Saturated soils may increase final foam volume 10-20% compared to dry conditions. This moisture-enhanced expansion proves beneficial for filling voids in water-bearing strata or areas with high groundwater tables.

Installation Procedures and Quality Control

Systematic injection protocols ensure complete void filling while preventing common application errors compromising performance.

Injection Point Layout

Strategic drilling patterns provide access to the entire void network requiring treatment. Grid spacing typically ranges from 18 to 48 inches depending on void size, soil permeability, and foam migration characteristics.

Injection sequence considerations:

• Smaller voids beneath concrete slabs require 18-24 inch centers
• Large erosion cavities in permeable soils allow 36-48 inch spacing
• Perimeter injections address void edges preventing foam escape
• Interior grid points fill central cavity volumes
• 5/8 inch hole diameter provides adequate flow capacity

Monitoring and Control Systems

Real-time data collection during injection validates proper void filling and prevents over-treatment.

Pressure Monitoring:

• Low pressure (0-20 PSI): Open void space requiring continued injection
• Moderate pressure (20-50 PSI): Partial filling or soil densification occurring
• High pressure (50-100 PSI): Approaching complete filling or achieving lift objectives
• Excessive pressure (>100 PSI): Risk of structural damage requiring injection cessation

Volume Tracking: Flow meters record material consumption comparing actual usage against calculated void volumes. Under-consumption suggests incomplete filling or foam escape requiring additional injections.

Elevation Surveys: Laser levels track surface movement during injection operations validating achievement of specified tolerances.

Common Void Formation Mechanisms

Understanding how voids develop guides detection strategies and influences injection approaches for different subsurface conditions.

Infrastructure Applications

Foam expansion characteristics enable void treatment across diverse facility types where traditional methods prove impractical or ineffective.

Treatment Plant Structures

Wastewater and water treatment facilities experience void formation from multiple mechanisms requiring specialized repair approaches. Clarifier tanks and aeration basins develop voids when foundation soils erode from vibration, chemical exposure, or groundwater flow.

Settlement disrupts gravity-fed processes requiring precise elevations. Foam injection accesses voids through existing access points or minimal penetrations in tank walls. The hydrophobic foam withstands continuous moisture exposure from process water and groundwater.

Industrial Floor Systems

Manufacturing facilities face floor settlement from heavy equipment loads, vibration, and inadequate original construction. Production equipment mounted on settled floors experiences alignment problems affecting tolerances and product quality.

The injection process works around installed equipment without requiring removal. Small diameter holes drilled between machinery access subsurface voids. Sequential injection lifts sections systematically while monitoring equipment alignment with laser systems.

Transportation Infrastructure

Highways, bridges, and airport runways require rapid void remediation minimizing traffic disruption. Bridge approach slabs settle as backfill consolidates behind abutments. Foam injection fills voids causing settlement and lifts slabs to match bridge deck elevations.

Projects complete during overnight closures reopening to traffic by morning rush periods. Airport runways benefit from the 15-minute cure time enabling reopening far faster than concrete replacement or traditional grouting.

Material Properties and Long-Term Performance

Cured polyurethane foam exhibits characteristics ensuring sustained void filling effectiveness across infrastructure service lives.

Structural Characteristics

Closed-cell foam structure provides mechanical properties suitable for long-term structural support applications:

• Cellular architecture distributes loads across interconnected cell walls
• Compressive strength remains constant over time
• Material bonds to concrete, soil, and rock surfaces
• Flexibility accommodates minor movements from thermal expansion or vibrations
• Field testing after years shows no strength degradation

Environmental Resistance

Chemical stability and moisture impermeability ensure polyurethane performance in aggressive subsurface environments. The hydrophobic closed-cell structure prevents water absorption, resists chemical attack, and withstands freeze-thaw cycles without damage.

Groundwater flow through soil surrounding foam masses does not erode or displace the cured material. Thermal stability across temperature ranges from -40°F to 200°F ensures consistent performance throughout infrastructure service conditions.

Performance Limitations

Certain subsurface conditions reduce foam injection effectiveness, requiring alternative solutions or hybrid approaches combining multiple technologies.

Unsuitable Soil Conditions

Highly organic soils undergoing active decomposition create voids faster than injection can address. These situations require organic material removal and replacement with inert fill before stabilization attempts.

Extremely loose sands with minimal fines content allow excessive foam migration beyond intended treatment zones. Injection point spacing requires adjustment and higher-density foams limit migration in these permeable formations.

Active Ongoing Issues

Active pipe leaks require repair before foam injection prevents continued erosion creating new voids. Foam may temporarily fill cavities but flowing water will erode new channels around the injected material.

Progressive soil consolidation from heavy loads exceeding bearing capacity demands load reduction or foundation reinforcement before void treatment. Foam injection may temporarily restore grades but continued excessive loading will cause new settlement.

Conclusions

Polyurethane foam expansion provides effective void filling through controlled chemical reactions creating rigid support masses occupying irregular subsurface cavities. The material's ability to expand up to 40 times original volume enables complete filling of complex geometries that cement grouts cannot penetrate. Proper formulation selection, temperature control, and injection monitoring ensure predictable expansion achieving project objectives.

Understanding expansion mechanics, flow patterns, and pressure relationships enables successful void remediation in treatment plants, manufacturing facilities, transportation infrastructure, and commercial properties. The rapid cure time and minimal disruption make foam injection particularly valuable where operational continuity proves critical.At Superior PolyLift™, we specialize in polyurethane foam void filling for industrial and municipal infrastructure requiring precision stabilization without extended facility shutdowns. Our technical expertise in expansion control and material selection ensures complete void treatment addressing both immediate settlement concerns and long-term stability requirements. Contact us to discuss subsurface void challenges at your facility.
