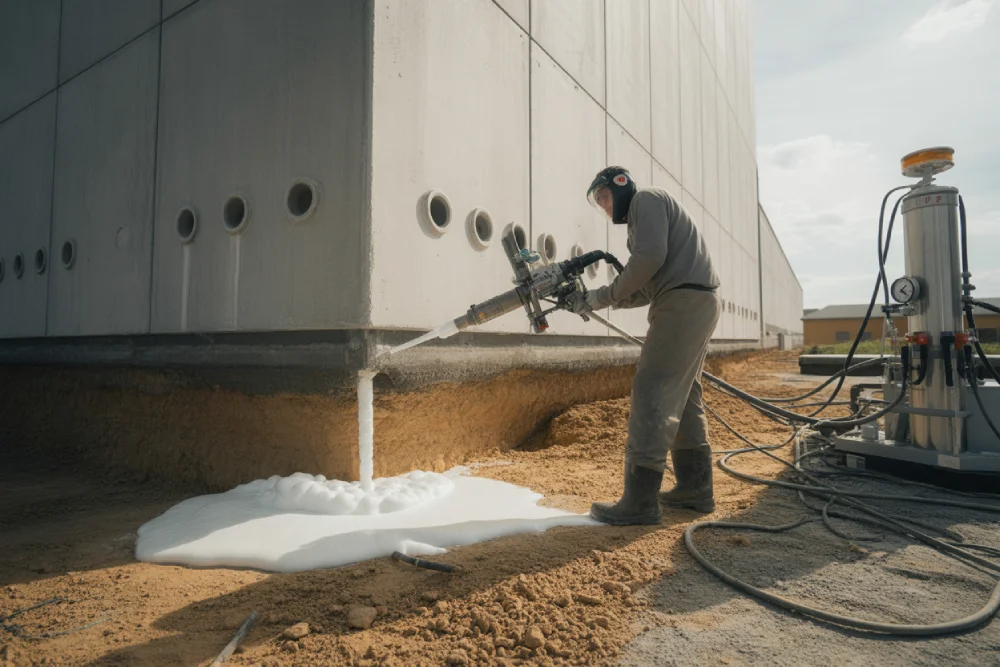

High-density polyurethane foam injected through small drilled holes expands rapidly filling voids from erosion and soil compaction, compacts surrounding soil improving load-bearing capacity, gently lifts foundations to original positions, and hardens within minutes forming strong waterproof support preventing further movement.
Understanding subsurface processes during foundation repair reveals technology effectiveness. The invisible transformation beneath concrete determines success. Polyurethane foam concrete lifting creates comprehensive underground changes. Facility managers benefit from comprehending these mechanisms.
Foundation repair begins with creating injection access points. Small precise holes enable foam delivery beneath slabs. Understanding drilling procedures explains minimal disruption advantages.
Standard injection holes measure 5/8 inch diameter through foundation slabs. Rotary hammer drills equipped with carbide bits cut cleanly through concrete. The small size minimizes structural impact dramatically.
Hole placement follows engineered patterns based on void locations. Typical spacing ranges 4-6 feet for comprehensive coverage. Strategic positioning ensures complete treatment without excessive penetrations.
Drilling Specifications:
Drill depth extends through foundation thickness into subgrade soil. This ensures foam injection beneath slab rather than within concrete. Typical depths reach 6-10 inches for standard foundations.
Vacuum extraction removes concrete dust during drilling. Clean holes enable better observation and foam flow. The cleanliness maintains professional site appearance. Continuous extraction proves essential.
Reinforcement detection prevents cutting structural steel when possible. Ground-penetrating radar or metal detectors locate rebar. Alternative positions avoid damaging reinforcement. This protects foundation integrity.
Drilled holes create direct pathways to subsurface voids and soil. The access enables targeted foam delivery to problem areas. Understanding pathway importance explains treatment effectiveness.
Each hole provides injection access to approximately 20-30 cubic feet. The foam expansion from single points treats substantial volumes. Overlapping coverage zones ensure complete treatment without gaps.
Pathway Characteristics:
Holes remain open throughout injection process enabling multiple passes. Air purge systems keep ports clear between injections. This capability allows incremental treatment building support gradually.
The small size compared to traditional methods proves significant. Mudjacking requires 1.5-2 inch diameter holes. Underpinning needs extensive excavation. Foam's minimal penetrations distinguish the approach.
Subsurface foam injection creates dramatic transformations. The invisible process determines treatment success. Understanding expansion mechanics explains superior performance.
Foam components begin as separate liquids stored in proportioning equipment. Mixing occurs at injection gun combining materials. The liquid mixture flows into holes before expansion starts.
Low viscosity enables flowing through soil pores and voids. The material reaches distant cavities before expansion begins. This flow phase lasts 5-15 seconds depending on formulation.
Flow Characteristics:
Gravity assists liquid flow into deeper voids beneath foundations. Starting injection at low points allows downhill movement. The natural flow enhances treatment coverage efficiency.
Soil porosity affects liquid penetration and distribution. Loose granular soils allow extensive flow. Dense clays restrict movement more. The variation affects injection strategy.
Chemical reaction between components triggers rapid expansion. Carbon dioxide generation creates cellular structure. Volume increases 15-40 times within 30-60 seconds.
The exothermic reaction generates heat accelerating expansion. Temperatures reach 140-180°F during peak reaction. This heat proves visible as vapor in cold weather.
Expansion Process:
Expansion follows paths of least resistance through soil. Voids receive foam first before denser areas. This natural flow pattern ensures filling all cavities.
The expanding foam pushes against surrounding soil and foundation. Upward pressure on slab underside creates lifting force. Lateral pressure compacts adjacent soil particles.
Confined space beneath foundations enhances foam strength. Surrounding materials prevent full expansion increasing density. The compression creates stronger final product.
Complete void elimination distinguishes foam from traditional methods. Understanding filling mechanisms explains long-term stability advantages.
Expanding foam flows into every void contacted during liquid phase. The expansion fills all accessed cavities completely. No spaces remain after proper injection execution.
Small interconnected voids throughout subgrade receive treatment. The flowing foam penetrates networks of minor cavities. Complete filling prevents progressive erosion and enlargement.
Void Treatment:
Large isolated voids require strategic injection planning. Multiple injection points ensure reaching all areas. The systematic approach prevents missing critical zones.
Erosion channels from water flow get filled and sealed. The waterproof foam prevents future particle transport. This protection proves critical for long-term stability.
Foam creates continuous contact beneath entire foundation area. This uniform support distributes loads evenly preventing stress concentrations. The comprehensive coverage distinguishes foam from spot treatments.
Traditional methods leave voids where materials cannot reach. Point contact at grout locations creates stress points. These concentrations can crack foundations or cause renewed settlement.
Support Advantages:
The continuous support maintains structural integrity better. Foundation loads distribute across entire treated area. No weak zones exist allowing localized failures.
Post-injection ground-penetrating radar confirms complete filling. Comparison to pre-treatment scans shows foam distribution. Any remaining voids get identified for supplemental treatment.
| Underground Process | Timeline | Physical Change | Observable Effect | Mechanism | Final Result |
| Liquid Injection | 0-15 seconds | Flow into voids | None visible above | Gravity and pressure-driven flow | Void penetration |
| Chemical Reaction | 5-30 seconds | Heat generation | Slight warmth detectable | Isocyanate-polyol reaction | Cellular structure formation |
| Rapid Expansion | 10-60 seconds | Volume increase 15-40x | Foundation elevation rise | Gas generation, expansion | Void filling, lifting |
| Soil Compaction | 30-120 seconds | Particle densification | Increased resistance | Outward expansion pressure | Enhanced bearing capacity |
| Initial Cure | 5-15 minutes | Cell wall solidification | Shape retention | Polymer cross-linking | Structural rigidity |
| Complete Cure | 15-60 minutes | Maximum strength development | Full load capacity | Chemical bond completion | Permanent support |
Foam expansion affects surrounding soil significantly. These improvements enhance overall foundation support. Understanding compaction mechanisms explains long-term benefits.
Outward foam expansion exerts 50-100 PSI pressure on adjacent soil. This force compresses loose particles reducing void spaces. Soil density increases substantially from treatment.
Sandy soils compact readily under expansion pressure. Individual grains pack together more tightly. The result resembles well-compacted engineered fill material.
Compaction Effects:
Soft clay soils consolidate expelling excess moisture. The drier denser clay provides improved support. Expansion creates mechanical bonding between foam and clay.
The compaction zone extends several inches beyond foam location. This enlarged stabilized area enhances overall foundation support. The effect exceeds just filled void volumes.
Testing confirms bearing capacity improvements after foam injection. Plate load tests show 50-200% increases depending on conditions. Weakest soils demonstrate greatest improvement potential.
The densified soil supports foundation loads more effectively. Increased particle contact improves load transfer. The enhanced subgrade reduces future settlement risks.
Capacity Improvements:
Foundation designs assume specific soil bearing capacities. Settlement occurs when actual capacity falls below assumptions. Foam treatment restores or exceeds original design values.
The improved bearing capacity supports heavier loads safely. Facilities can increase equipment weights without concerns. The enhanced foundation proves more robust long-term.
Expanding foam creates upward pressure lifting settled foundations. Understanding hydraulic lifting explains precision capabilities.
Foam expansion beneath foundations generates upward pressure. This hydraulic force acts on entire slab underside area. The distributed pressure enables controlled lifting.
Typical expansion pressures reach 50-100 PSI during active reaction. Four-inch concrete weighs approximately 50 PSF (0.35 PSI). The enormous pressure advantage enables lifting heavy foundations easily.
Lifting Forces:
The gradual pressure buildup allows controlled lifting. Sudden pressure spikes get avoided through proper injection. Incremental material addition enables precision impossible otherwise.
Foundation thickness and reinforcement affect lifting response. Thicker slabs require more pressure overcoming weight. Reinforcement provides rigidity during lifting process.
Real-time laser monitoring tracks elevation changes continuously. Digital displays show movement to 1/16 inch accuracy. Operators adjust injection based on observed response.
Multiple monitoring points ensure even lifting across foundations. All areas should rise uniformly preventing differential movement. Uneven response indicates localized soil variations.
Monitoring Protocol:
Injection stops when targets get reached exactly. Air purge systems enable fine adjustments returning to holes. This capability achieves exceptional precision consistently.
Over-lifting gets prevented through careful monitoring and control. Excessive rise can crack foundations or damage structures. The vigilant observation prevents these problems.
Foam transitions from expanding liquid to rigid solid quickly. Understanding cure progression explains when loading becomes safe.
Initial set occurs within 5-15 minutes after expansion completes. The foam retains shape without external support. Cellular structure has formed and closed preventing collapse.
Working cure reaches 15-30 minutes for standard formulations. At this point foam supports light loads without damage. Foot traffic becomes safe but full loading should wait.
Curing Progression:
Full cure completes within one hour for most formulations. Maximum strength and load capacity develop by this time. Heavy equipment and full design loads become completely safe.
Some formulations continue strengthening slightly over 24-48 hours. The gains typically add 5-10% to initial values. However, practical purposes consider foam fully cured at one hour.
During curing individual foam cells seal creating closed-cell structure. Each cell becomes isolated preventing water infiltration. This structure provides waterproofing critical for foundations.
Rigid cell walls develop through polymer cross-linking. The chemical bonds create three-dimensional network. This structure provides compressive strength supporting loads.
Final Properties:
Testing confirms properties match specifications. Samples extracted from installations verify quality. Density and cellular structure get examined in laboratories.
The cured foam remains stable indefinitely. Environmental exposure doesn't degrade properties. The permanent characteristics ensure lasting foundation support.
Closed-cell foam creates impermeable moisture barriers. This waterproofing proves critical for foundation stability. Understanding barrier mechanisms explains long-term benefits.
Individual sealed cells prevent water passage through foam. The structure functions as waterproof membrane beneath foundations. Water cannot penetrate reaching underlying soil.
This barrier remains effective indefinitely as foam doesn't degrade. Moisture protection prevents erosion and soil weakening. Stable dry conditions persist beneath treated foundations.
Waterproofing Benefits:
High water table conditions don't limit foam effectiveness. Hydrophobic formulations work in saturated soils. The expanding material displaces water during injection.
Hydrostatic pressure from groundwater doesn't affect stability. The rigid structure resists pressures encountered underground. Foam maintains position despite water presence.
Water flow beneath foundations removes soil particles progressively. This erosion creates voids leading to settlement. Polyurethane foam stops this process completely.
The waterproof barrier prevents water accessing erodible soils. No flow occurs through properly installed foam. Particles cannot transport in water that doesn't exist.
Erosion Protection:
Traffic-induced pumping stops when water cannot access foundation undersides. The sealed support prevents pressure generation under loading. This protection proves critical for heavy facilities.
Foundation repairs near waterways face scour threats. Foam creates protective zones resisting erosion forces. The waterproof treatment extends several feet beyond injected areas.
Traditional foundation repair requires extensive excavation. Polyurethane foam proceeds with minimal intrusion. Understanding advantages explains widespread adoption.
Small injection holes eliminate excavation needs entirely. No trenching, digging, or soil removal occurs. The non-invasive approach reduces costs and operational disruption.
Traditional underpinning requires excavating around entire foundation perimeters. Heavy equipment creates major site disturbances. The extensive work disrupts operations for weeks.
Disruption Comparison:
Equipment enters buildings through normal doorways. Interior foundation repairs proceed without exterior excavation. This proves valuable for facilities with limited access.
Occupied buildings receive treatment without relocating tenants. Work proceeds around normal operations with coordination. Manufacturing continues during foundation stabilization.
Polyurethane foam cures within 15-30 minutes achieving working strength. Foundations support full loads within one hour. This rapid cure minimizes downtime dramatically.
Traditional methods require days or weeks before loading. Concrete needs 28 days reaching design strength. Cementitious grout cures 24-72 hours minimum.
Time Advantages:
Commercial facilities cannot afford extended closures. Every hour costs thousands in lost productivity. Foam's speed reduces financial impact substantially.
Emergency situations require immediate stabilization. Foam enables rapid intervention securing foundations quickly. Traditional methods prove too slow for urgent scenarios.
Beneath foundations during foam repair, high-density polyurethane injected through small holes expands 15-40 times filling voids from erosion and soil compaction completely. Expansion pressure compacts surrounding soil increasing bearing capacity 50-200% creating denser subgrade support. Hydraulic lifting force gently raises settled foundations to original positions with precision within 1/8 inch tolerances. Rapid curing within 15-60 minutes forms rigid closed-cell structure providing waterproof permanent support. The sealed cellular barrier prevents water infiltration, erosion, and further soil weakening maintaining stable conditions indefinitely. Non-invasive penny-sized holes eliminate excavation enabling same-day completion versus weeks for traditional methods. Professional concrete raising company services leverage these subsurface mechanisms delivering reliable foundation stabilization. Need comprehensive foundation repair? Contact us to discuss polyurethane foam solutions for your facility's foundation challenges.
