Step-by-Step Guide to the Polyurethane Foam Lifting Process

Polyurethane foam concrete lifting follows a systematic seven-step process: comprehensive site assessment identifying settlement causes, strategic injection hole placement every 3-6 feet, precise drilling through concrete slabs, controlled two-part polyurethane injection expanding 15-20 times original volume, real-time elevation monitoring ensuring accuracy within 1/8 inch, immediate hole patching, and thorough quality verification documenting results for industrial and municipal projects.

Understanding the polyurethane foam lifting process helps facility managers, engineers, and municipal officials make informed decisions about concrete repair projects. Polyurethane concrete lifting delivers precise, rapid solutions for settled warehouse floors, airport aprons, highway sections, and commercial facilities through advanced foam injection technology. The systematic approach ensures consistent results, minimal downtime, and long-term stability for heavy-load applications. This guide details each phase from initial assessment through final verification, explaining equipment, materials, quality control, and safety protocols governing professional concrete leveling operations serving industrial infrastructure nationwide.

Key Takeaways

• Comprehensive site assessment identifies settlement patterns, underlying causes like soil erosion or voids, load-bearing requirements for industrial equipment, and access constraints before developing injection strategies optimized for facility operations, existing utilities, and structural requirements governing commercial concrete lifting projects.
• Strategic injection hole placement every 3-6 feet based on slab thickness, settlement severity, and void locations determined through ground-penetrating radar or similar technologies ensures complete void filling while minimizing concrete penetrations and maintaining structural integrity for warehouse floors supporting forklifts and heavy machinery.
• Two-part polyurethane foam injected through 5/8-inch holes expands 15-20 times original volume within seconds, filling voids completely, stabilizing subgrade soils, and lifting concrete slabs with precision control allowing adjustments within 1/8 inch tolerance critical for industrial facilities requiring level floors for automated material handling systems.
• Real-time laser monitoring during injection tracks elevation changes continuously, enabling operators to stop precisely at target heights preventing over-lifting that could damage joints or adjacent structures, particularly important for airport taxiways, loading docks, and manufacturing facilities with tight tolerance requirements.
• Rapid cure time of 15-30 minutes allows immediate traffic loading versus 24-72 hours for mudjacking alternatives, minimizing operational disruptions for warehouses, distribution centers, and commercial facilities where downtime costs $10,000-50,000 daily in lost productivity and diverted operations.
• Quality verification through post-lift elevation surveys, ground-penetrating radar void confirmation, and load testing documents results meeting project specifications, provides baseline data for future monitoring, and creates comprehensive records satisfying municipal engineering requirements and facility management documentation standards for infrastructure assets.

Phase 1: Comprehensive Site Assessment and Planning

Professional polyurethane foam lifting begins with thorough evaluation establishing project scope, technical requirements, and execution strategy.

Settlement Pattern Analysis

Identifying settlement causes and extent determines optimal lifting approach. Site assessment examines multiple factors:

Surface Inspection:

• Crack patterns indicating settlement direction and magnitude
• Joint displacement showing differential movement
• Surface drainage issues from grade changes
• Evidence of previous repairs or patches

Subsurface Investigation:

• Ground-penetrating radar detecting voids beneath slabs
• Soil borings revealing subgrade conditions and composition
• Water table determination affecting material selection
• Utility location preventing conflicts during drilling

Structural evaluation measures slab thickness affecting injection strategy, identifies reinforcement presence influencing hole placement, determines load-bearing requirements for equipment and traffic, and assesses adjacent structure interaction to prevent damage during lifting.

Project Planning and Strategy

Different facilities present unique challenges requiring tailored approaches. The table below shows planning considerations for various project types:

Project logistics address operational constraints including equipment staging areas for trucks and trailers, power requirements from generators or facility electrical systems, traffic control and safety barriers, coordination with facility operations schedules, and environmental controls for indoor work environments. Safety planning establishes work zone perimeters, utility protection protocols, and emergency response procedures before mobilization begins.

Phase 2: Equipment Mobilization and Site Preparation

Proper setup ensures efficient execution and maintains safety throughout lifting operations. Professional polyurethane foam lifting requires trailer-mounted proportioning units that heat and mix foam components, high-pressure injection guns controlling foam delivery, laser levels monitoring elevation changes in real time, hammer drills creating precise injection holes, and ground-penetrating radar for subsurface scanning.

The two-part polyurethane foam system consists of resin and catalyst components with expansion ratios of 15-20:1 for most applications. Material density ranges from 2-4 pounds per cubic foot with compressive strength of 60-120 psi when cured. Cure time reaches 15-30 minutes to full strength, allowing immediate traffic loading that minimizes operational disruption for time-sensitive facilities.

Site Preparation Protocols

Establishing controlled work environments protects personnel and property throughout project execution. Work zone setup clears areas of debris, equipment, and materials while establishing safety perimeters with barriers and signage. Vehicles position for efficient material access, and utility locations receive verification and protection markings preventing conflicts during drilling operations.

Environmental controls vary by project location. Indoor projects require ventilation for foam odor dissipation, while outdoor projects need weather monitoring for temperature and precipitation conditions. Drainage protection prevents material contamination, and dust control during drilling operations maintains air quality. Safety briefings review injection sequences, crew responsibilities, facility personnel notifications, emergency procedures, and hazard identification before work begins.

Phase 3: Strategic Hole Drilling and Placement

Precision drilling at calculated locations enables effective void filling and slab lifting. Hole placement strategy balances thorough coverage with minimal concrete penetration, typically using standard grid spacing of 4-6 feet for uniform settlement. Void-focused patterns concentrate around detected voids, perimeter patterns address edge treatment for foundation issues, and custom approaches adapt to facility-specific requirements.

Several factors influence optimal spacing decisions. Slab thickness affects spacing with thicker slabs allowing wider intervals. Settlement severity determines density, as heavier settlement needs closer holes. Void size and distribution guide placement, with large voids requiring perimeter injection. Reinforcement location influences patterns to avoid cutting rebar when possible.

Drilling Procedures

Controlled drilling prevents damage while creating proper injection access. Standard specifications call for 5/8-inch diameter holes, substantially smaller than mudjacking's 1.5-2 inch penetrations. Depth extends through slab thickness plus 1-2 inches into subgrade, with typically vertical angles occasionally adjusted for specific applications. Vacuum extraction removes cuttings immediately maintaining cleanliness throughout operations.

Quality control during drilling employs depth gauges ensuring consistent penetration, location verification against planned patterns, reinforcement detection and avoidance systems, and immediate documentation of any anomalies discovered during hole creation. For a typical 5,000 square foot warehouse floor section with moderate settlement using 5-foot grid spacing, approximately 200-250 holes require 2-3 hours drilling time, followed by 3-5 hours injection time, with total project duration of 6-10 hours including setup and cleanup.

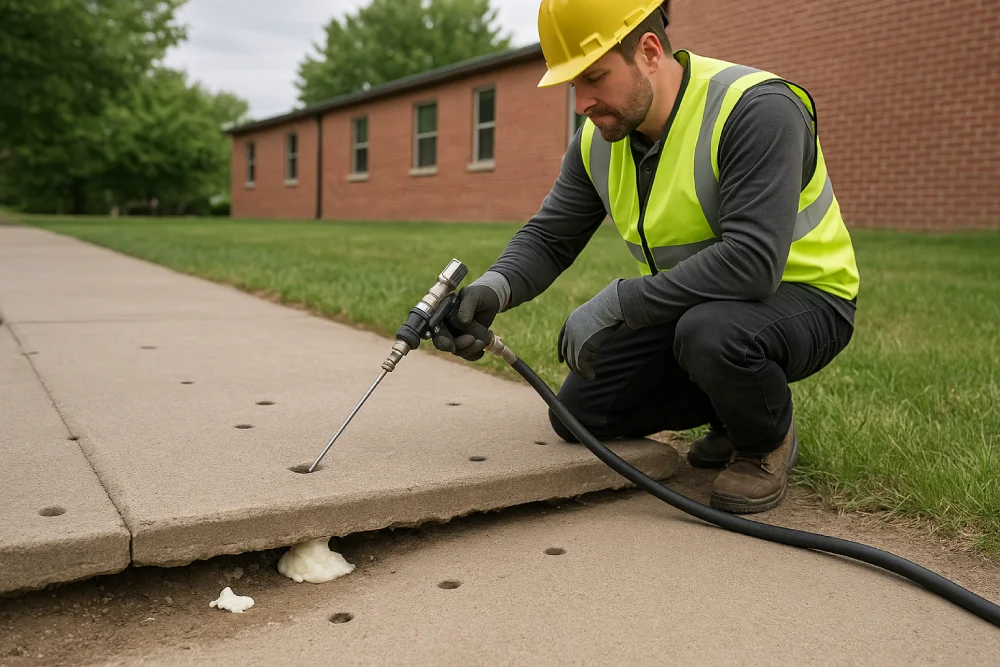

Phase 4: Polyurethane Foam Injection Process

Controlled foam injection fills voids and lifts concrete with precision impossible through traditional methods. The two-part foam chemistry involves Part A (Isocyanate) reacting with Part B (Polyol blend) when mixed, with components heated to 110-130°F for optimal reaction. Mixing ratio maintains precisely controlled 1:1 by volume typically, though temperature sensitivity requires careful monitoring throughout application.

Expansion characteristics begin within 5-10 seconds of mixing, reaching peak expansion of 15-20 times original volume. Foam rise time spans 30-60 seconds from injection to full expansion, with cure time of 15-30 minutes to achieve working strength. Material advantages include lightweight density of 2-4 pcf versus mudjacking grout at 100-120 pcf, waterproof closed-cell structure resisting moisture, durability maintaining properties 50+ years, and minimal weight preventing additional load on weak soils.

Injection Technique and Monitoring

Systematic injection ensures complete void filling and precise lifting through careful sequencing. Operations start at lowest elevations where settlement is greatest, working toward higher areas preventing foam migration to already-lifted sections. Multiple passes return to holes adding material as needed while continuous monitoring watches laser levels tracking elevation changes. Adjustment capability allows operators to stop or continue based on real-time feedback maintaining precision throughout the process.

Experienced technicians manage multiple variables simultaneously including injection pressure adjusted based on void size and slab resistance, material flow rate controlled to prevent slab cracking from rapid expansion, hole selection sequence optimized based on observed slab response, and elevation changes monitored continuously with laser levels. The table below shows injection parameters for different applications:

Safety during injection employs pressure limits preventing slab cracking or heaving, over-lift prevention through continuous monitoring, adjacent structure protection from expansion forces, and material containment preventing foam escape through cracks.

Phase 5: Real-Time Elevation Control and Precision

Continuous monitoring during injection enables accuracy unattainable with traditional concrete leveling methods. Modern laser leveling technology establishes rotary lasers creating reference planes across work areas, with receivers on slab surfaces tracking elevation changes. Digital readouts show height adjustments to 1/16 inch precision, and multiple monitoring points cover large area projects ensuring comprehensive tracking.

Monitoring protocol establishes baseline measurements before injection begins, continues tracking during foam injection, documents incremental progress at each hole, and performs final verification against target elevations. Industrial applications demand tight tolerances with manufacturing facilities requiring ±1/8 inch for equipment mounting, automated warehouses needing ±1/4 inch for guided vehicle systems, airport aprons specifying ±1/2 inch for drainage and aircraft operations, and general commercial applications accepting ±1/2 to 1 inch for most uses.

Adaptive Injection Strategy

Real-time data enables mid-project adjustments optimizing results based on actual slab behavior. Operators respond to observations including unexpected void discoveries requiring additional holes, uneven lifting needing adjusted injection sequences or volumes, adjacent slab interaction requiring modified approaches, and foam migration indicating necessary changes to hole spacing or injection rates.

Common challenges require specific solutions. Foam breakthrough with visible material emerging through cracks indicates paths of least resistance requiring injection strategy modification. Insufficient lift may indicate larger voids requiring additional material or different injection locations. Over-lift tendency necessitates reduced injection volume per hole and more gradual work progression. Uneven response suggests subgrade inconsistency requiring varied approaches in different areas of the project.

Phase 6: Hole Patching and Site Restoration

Completing surface repairs restores appearance and prevents moisture infiltration. Professional finishing uses high-strength polymer cement matching existing concrete color, fast-set mortars for rapid traffic restoration, epoxy compounds for chemical-resistant environments, and color-matched materials blending with surrounding concrete surfaces.

Application process cleans holes removing dust and debris, applies bonding agent ensuring patch adhesion, fills holes slightly overfull allowing for settling, trowels smooth and level with surrounding surface, and protects patches during cure periods typically lasting 1-2 hours. Quality standards require patches flush with surrounding concrete surface, color matching minimizing visual impact, full depth compaction preventing future settlement, and weather-resistant seal protecting against moisture infiltration.

Final Cleanup and Inspection

Site restoration leaves facilities ready for immediate use through systematic procedures. Cleanup removes all equipment, materials, and debris from work areas. Sweeping or vacuuming restores cleanliness, proper disposal handles waste materials, and restoration returns moved items or traffic barriers to original positions.

Pre-departure inspection verifies all holes are patched and finished properly, confirms no foam residue or spills remain in work areas, checks surrounding areas for any damage requiring attention, and ensures safety barriers are removed where appropriate allowing normal facility operations to resume without restriction or hazard.

Phase 7: Quality Verification and Documentation

Comprehensive verification confirms project success and provides records for future reference. Post-lift elevation surveys use laser level verification at multiple points, comparison to pre-project baseline measurements, documentation of final elevations versus targets, and identification of any areas requiring adjustment before final acceptance.

Acceptance criteria specify elevations within specified tolerances, uniform slopes for drainage where required, joint alignment preventing trip hazards, and no visible damage from lifting processes. Subsurface verification through ground-penetrating radar performs post-injection scanning detecting any remaining voids, comparison to pre-project scans showing improvement, documentation of foam distribution beneath slabs, and identification of any areas needing supplemental injection.

Documentation and Reporting

Comprehensive records support warranty and facility management needs. The table below shows typical deliverables:

Professional contractors provide performance guarantees with typical warranty periods of 3-5 years for materials and workmanship. Coverage includes re-settlement, foam degradation, and installation defects while excluding new settlement from external causes or structural failures unrelated to lifting operations. Claim processes establish documentation requirements and response timelines ensuring prompt resolution of any performance concerns.

Applications Across Industrial and Municipal Sectors

Polyurethane foam lifting serves diverse infrastructure needs requiring minimal downtime and maximum durability. Warehouse and distribution centers benefit from loading dock leveling for trailer interface, floor joints requiring elevation matching, aisle settlement from forklift traffic, and rack support areas bearing concentrated loads. Performance requirements include immediate load capacity for 24/7 operations, minimal disruption to inventory movement, long-term stability under repetitive traffic, and precision for automated guided vehicles.

Airport infrastructure demands exacting standards and rapid completion for taxiway and apron settlement repair, hangar floor leveling, cargo ramp restoration, and terminal floor applications. Critical factors include FAA compliance and specifications, weather-dependent work windows, immediate aircraft loading capability, and precise drainage slope maintenance essential for aviation safety.

Manufacturing facilities require tight tolerances and minimal downtime for equipment mounting pad leveling, production line floor requirements, clean room floor flatness, and heavy machinery support areas. Specifications demand extreme precision of ±1/8 inch typical, chemical resistance in process areas, vibration isolation considerations, and coordinated shutdown scheduling minimizing production impacts.

Cost-Benefit Analysis and ROI

Understanding economic value helps justify investment in professional concrete lifting versus alternatives. Polyurethane foam lifting typically costs less than replacement while delivering comparable performance. Material costs range $4-12 per pound of foam injected, labor runs $75-150 per hour for crew and equipment, typical projects cost $5-15 per square foot depending on severity, while replacement alternatives demand $8-20+ per square foot for remove and replace operations.

Cost variables affecting price include settlement severity and required lift height, accessibility and site constraints, project size and mobilization efficiency, and geographic location with market conditions. Beyond direct costs, operational considerations affect total project value significantly through downtime impacts on facility operations and revenue generation.

Operational Impact Value

Downtime comparison reveals substantial differences between methods. Polyurethane foam projects span 6-24 hours typical duration with immediate use capability. Mudjacking requires 1-3 days project duration plus 24-72 hour cure before loading. Replacement extends 5-15 days duration requiring 28 days to reach full strength for heavy loading.

For distribution centers operating 24/7 with daily operating revenue of $500,000, downtime cost at 10% impact equals $50,000 per day. Foam lifting downtime of 1 day creates $50,000 impact, while replacement downtime of 7 days generates $350,000 impact, producing net downtime savings of $300,000 favoring foam lifting for time-sensitive operations.

Long-term performance value considers lifecycle costs beyond initial investment. Properly executed foam lifting provides 20-30+ years service life with void filling permanence as foam doesn't degrade, erode, or wash out. Re-settlement risk remains minimal if original causes are addressed, and maintenance requirements extend no beyond normal concrete care protocols.

Conclusion

The polyurethane foam concrete lifting process delivers precise, rapid, and cost-effective solutions for industrial and municipal infrastructure through systematic application combining advanced materials, specialized equipment, and proven techniques. Seven phases from comprehensive assessment through quality verification ensure consistent results meeting tight tolerances required for warehouses, airports, manufacturing facilities, and commercial properties. Superior PolyLift™ applies this proven methodology to projects throughout Houston, Southeast Texas, and the Gulf Coast region.

Facility managers and engineers seeking professional concrete lifting solutions should evaluate contractors based on experience, equipment capabilities, quality control systems, and documented performance. For projects requiring minimal downtime, precise elevation control, and long-term stability, contact Superior PolyLift™ to discuss how polyurethane foam lifting addresses your specific facility requirements and operational constraints.
