Precision Lifting: How Contractors Control Foam Expansion

Precision Lifting: How Contractors Control Foam Expansion

Alison R. Sinclair | 27 Jan 2025

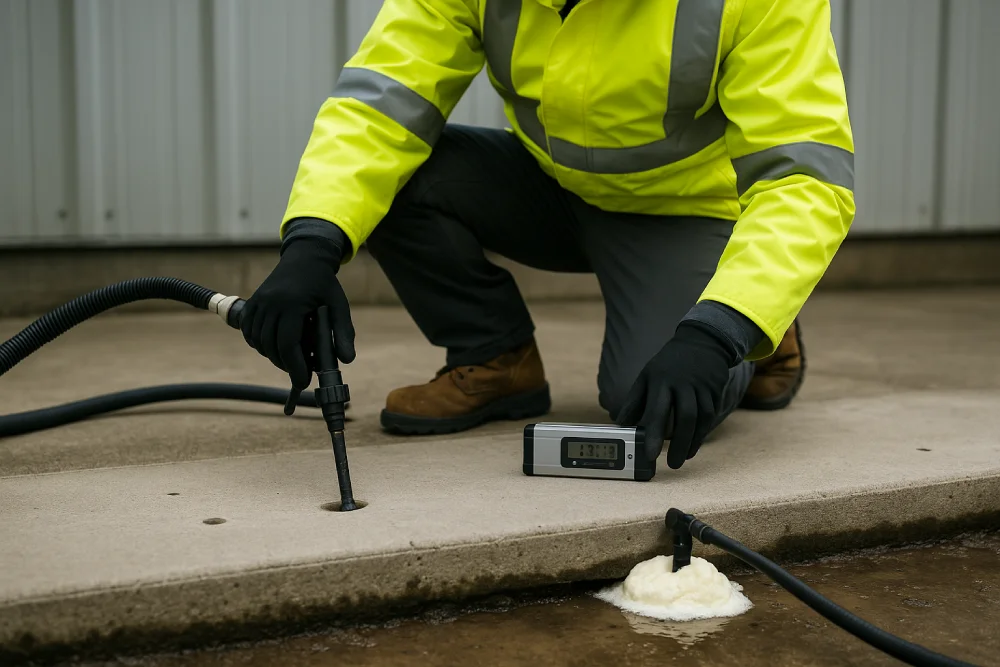

Contractors control polyurethane foam expansion through real-time laser monitoring tracking movements to 1/16 inch, incremental injection adding small foam quantities systematically, pressure gauges managing 100-300 PSI injection forces, component temperature regulation ensuring consistent 110-130°F reactions, and experienced operators making continuous adjustments based on slab response achieving precision within 1/8 inch tolerance for industrial applications.

Uncontrolled foam expansion creates serious problems for concrete lifting. Over-lifting damages joints and adjacent structures. Under-lifting leaves settlement issues unresolved. Professional polyurethane foam concrete lifting requires precision control throughout injection. Modern equipment and techniques enable accuracy impossible with traditional methods.

Key Takeaways

  • Real-time laser monitoring: Rotary laser levels create reference planes tracking elevation changes to 1/16 inch accuracy, digital receivers display slab movements continuously during injection, multiple monitoring points cover entire project areas, operators watch data adjusting injection immediately based on real-time slab response preventing over-lifting
  • Incremental injection strategy: Small foam quantities (5-30 lbs per hole) injected systematically rather than large volumes at once, operators return to previous holes adding material as needed, multiple passes allow controlled gradual lifting, this approach prevents sudden movements damaging concrete or adjacent structures
  • Pressure management systems: Modern equipment monitors injection pressure (100-300 PSI) continuously through gauges at gun and proportioner, operators adjust pressure based on void size and soil resistance, excessive pressure indicates blockage or foam breakthrough requiring immediate response, controlled pressure prevents slab cracking
  • Component temperature control: Heating systems maintain foam components at optimal 110-130°F temperatures, consistent heat ensures predictable expansion rates and cure times, temperature monitoring prevents reaction problems from cold materials, proper heating critical for achieving specified foam densities and strengths
  • Foam formulation selection: Different densities (2-8 PCF) and reaction times (10-60 seconds) suit specific applications, fast-reacting foams for small precise lifts, slow-reacting formulations for large void filling, contractors match foam properties to project requirements optimizing control
  • Operator skill and experience: Trained technicians recognize slab response patterns, adjust techniques based on soil conditions and void locations, prevent common problems through proactive intervention, years of experience enable precision impossible for inexperienced operators regardless of equipment quality

Understanding Foam Expansion Dynamics

Polyurethane foam expansion follows predictable patterns when properly controlled. Understanding these dynamics enables precision lifting. Multiple factors influence how foam behaves during injection operations.

The Expansion Process Explained

Polyurethane foam begins as two liquid components stored separately. Mixing triggers rapid chemical reaction and expansion. This transformation happens in distinct phases requiring management.

Component A (isocyanate) and Component B (polyol blend) combine at injection gun. Mixing occurs under high pressure as materials exit nozzle. The chemical reaction starts immediately upon contact.

Expansion Phases:

  • Initial mixing (0-5 seconds): Components combine, reaction begins
  • Rapid expansion (5-30 seconds): Foam volume increases 15-20 times
  • Peak expansion (30-60 seconds): Maximum volume reached
  • Early cure (1-5 minutes): Cell structure solidifies
  • Working cure (5-15 minutes): Load-bearing capacity develops
  • Full cure (15-30 minutes): Maximum strength achieved

Carbon dioxide gas forms during reaction creating cellular structure. This gas generation drives expansion pushing foam outward. The foam flows into voids following paths of least resistance.

Heat generation from exothermic reaction affects expansion rate. Higher temperatures accelerate reactions and expansion. Component heating to 110-130°F ensures consistent performance. This control becomes critical for precision lifting operations.

Factors Affecting Expansion Control

Multiple variables influence foam expansion and lifting precision. Professional contractors manage these factors through equipment and technique.

Temperature affects expansion dramatically throughout the process. Cold materials react slower producing less expansion. Hot materials react faster with increased expansion. Ambient conditions impact reaction rates despite component heating.

Critical Control Factors:

  • Component temperature (110-130°F optimal)
  • Ambient temperature and conditions
  • Void size and configuration beneath slab
  • Soil moisture and density
  • Injection pressure and flow rate
  • Foam formulation and density selected
  • Slab thickness and reinforcement
  • Adjacent structure proximity and sensitivity

Void geometry determines how foam expands and flows. Large open voids allow rapid foam travel horizontally. Small tight voids restrict movement creating upward pressure. Operators adjust injection based on void characteristics discovered.

Soil conditions affect foam behavior significantly during expansion. Dense soils resist expansion creating upward lifting force. Loose soils allow lateral foam movement reducing lift. Saturated conditions require specialized hydrophobic formulations for proper expansion.

Laser Monitoring Technology

Modern laser systems provide real-time elevation tracking during injection. This technology enables precision impossible with older methods. Continuous monitoring prevents over-lifting and ensures target accuracy.

Rotary Laser Level Systems

Rotary lasers create 360-degree reference planes for elevation control. The laser head spins continuously projecting level line. Receivers detect beam position measuring elevation changes precisely.

Professional-grade rotary lasers achieve 1/16 inch accuracy at 100 feet. This precision meets industrial tolerance requirements. Self-leveling mechanisms maintain accuracy despite equipment movement or vibration.

Laser System Components:

  • Rotary laser transmitter creating reference plane
  • Laser receivers detecting beam position
  • Digital displays showing elevation readings
  • Mounting tripods providing stable platforms
  • Remote controls adjusting settings during operation
  • Battery systems powering continuous operation

The transmitter mounts on stable tripod at project site. Automatic leveling establishes horizontal reference plane within seconds. Laser beam rotates creating level line across entire area.

Receivers attach to slab surface at monitoring points. Electronic sensors detect laser beam position continuously. Digital displays show elevation relative to reference plane. Accuracy reaches 1/16 inch in digital readout mode.

Multiple receivers cover large project areas simultaneously. Operators monitor several points ensuring even lift distribution. This prevents tilting or uneven elevation changes. Comprehensive coverage maintains control across entire treatment zone.

Monitoring SystemAccuracyCoverage RangeUpdate FrequencyTypical ApplicationsCost Range
Single-Point Laser1/16 inch300 feet radiusContinuousSmall areas, simple lifts$800-2,000
Multi-Point Laser1/16 inch600 feet radiusContinuousMedium projects, multiple zones$2,000-5,000
Grade Laser with Slope1/8 inch1,000+ feetContinuousDrainage slopes, large areas$3,000-8,000
3D Laser Scanner1mm (0.04 inch)UnlimitedPost-scanComplex surfaces, verification$15,000-50,000
Manual Optical Level1/8 inch500 feetPeriodic checksBudget projects, verification$300-1,000

Real-Time Data Interpretation

Operators watch laser receivers continuously during injection operations. Digital displays update in real-time showing movement. This immediate feedback enables precise control throughout lifting.

Elevation readings display in inches or millimeters depending on system. Target elevations get programmed before injection begins. Receivers show difference from target guiding injection decisions.

Monitoring Protocol:

  • Establish baseline readings before injection
  • Set target elevations for each monitoring point
  • Watch displays continuously during foam injection
  • Stop injection when target elevation reached
  • Document final elevations at all points
  • Verify uniform lift distribution across area

Sudden elevation changes indicate foam reaching monitoring location. Operators observe rates of movement during injection. Slow gradual rise indicates controlled lift progressing properly. Rapid sudden movement suggests excessive foam or breakthrough.

The relationship between injection location and monitored points matters. Foam injected far from receiver takes time reaching that area. Operators anticipate lag between injection and elevation response. Experience guides timing of injection relative to monitoring feedback.

Uneven readings between monitoring points reveal slab behavior. All points should rise similarly during proper lifting. Differential movement indicates problems requiring immediate response. Operators adjust injection strategy based on observed patterns.

Incremental Injection Methodology

Controlled injection prevents over-lifting and ensures even elevation changes. Small quantities added systematically provide better control than large single injections. This methodical approach defines professional operations.

Systematic Hole Sequencing

Strategic hole placement enables controlled foam distribution beneath slabs. Proper sequencing ensures even treatment and predictable lifting. Operators develop injection plans based on settlement patterns.

Holes typically space 4-6 feet apart in grid patterns. Closer spacing provides better control for precision work. Wider spacing suits simple void filling applications. Assessment determines optimal hole layout for each project.

Sequencing Strategies:

  • Grid pattern: Systematic coverage for uniform settlement
  • Perimeter first: Edge treatment before center injection
  • Low-to-high: Start at deepest settlement working up
  • Quadrant approach: Divide area into sections treating sequentially
  • Custom pattern: Adapted to specific void locations

Low areas receive initial treatment establishing base level. Operators work systematically toward higher areas. This prevents foam migration to already-lifted zones. Gravity assists keeping foam where injected initially.

Multiple passes through hole pattern add material incrementally. First pass may inject 10-20 pounds per hole. Subsequent passes add 5-10 pounds as needed. Monitoring guides quantity decisions at each location.

Small-Quantity Injection Technique

Professional operators inject small foam quantities rather than large volumes. This approach provides superior control preventing sudden movements. Equipment design supports incremental application methodology.

Modern injection guns feature air purge capability maintaining open ports. Operators can stop and restart injection at any hole. This flexibility enables systematic treatment across project area. No need to drill additional holes when returning to locations.

Injection Volume Guidelines:

  • Initial pass: 10-20 lbs per hole for baseline treatment
  • Secondary pass: 5-15 lbs per hole for adjustment
  • Final pass: 2-8 lbs per hole for precise targeting
  • Total per hole: 15-50 lbs typical depending on voids
  • Heavy settlement: 30-80 lbs per hole over multiple passes

Small injections allow foam to flow and expand completely. Large quantities create excessive pressure and heat. This can crack slabs or cause uncontrolled expansion. Incremental approach prevents these problems entirely.

Waiting brief periods between passes allows assessment of response. Operators observe how slab reacts to initial foam. Monitoring reveals need for additional material at specific locations. This data-driven approach optimizes material usage and results.

Pressure Management and Control

Injection pressure directly affects foam placement and slab response. Too little pressure prevents proper void filling. Excessive pressure cracks concrete or causes foam breakthrough. Professional equipment enables precise pressure control.

Pressure Monitoring Systems

Modern proportioners feature dual pressure gauges monitoring both components. Each material line has dedicated gauge showing real-time pressure. Operators watch these continuously during injection operations.

Injection guns include pressure gauges at application point. These show actual pressure during foam delivery. Comparison between proportioner and gun pressures reveals flow restrictions. Significant differences indicate hose blockage or gun problems.

Pressure Monitoring Points:

  • Proportioner A-side gauge: Isocyanate pressure
  • Proportioner B-side gauge: Polyol blend pressure
  • Injection gun pressure gauge: Delivery pressure
  • Pressure should match between components for proper mixing
  • Typical operating range: 100-300 PSI depending on application

Normal injection pressures range 150-250 PSI for most applications. Void filling uses lower pressures (100-150 PSI) allowing foam flow. Heavy lifting requires higher pressures (200-300 PSI) for adequate force. Operators adjust based on observed slab response.

Pressure spikes indicate blockages or foam breakthrough through cracks. Sudden pressure drops suggest hose failure or connection problems. Monitoring enables immediate response to equipment issues. This prevents wasted material and ensures proper injection.

Pressure Adjustment Techniques

Experienced operators adjust pressure based on multiple factors. Soil conditions, void size, and slab thickness all influence requirements. Pressure modifications happen continuously during injection operations.

Dense soils require higher pressures overcoming resistance to foam expansion. Loose soils need lower pressures allowing controlled foam placement. Saturated conditions may need pressure adjustments for proper displacement.

Pressure Adjustment Factors:

  • Soil density and resistance
  • Void size and configuration
  • Injection depth beneath slab
  • Foam formulation being used
  • Desired lift speed and control
  • Slab thickness and reinforcement
  • Adjacent structure sensitivity

Large voids allow lower pressure injection with foam flowing easily. Small tight voids require higher pressure forcing foam into spaces. Operators recognize void characteristics from pressure response during injection.

Deep injections under thick slabs need adequate pressure reaching target depth. Shallow injections under thin slabs use minimal pressure preventing breakthrough. Slab thickness guides pressure selection for each location.

Adjustments happen in 25-50 PSI increments testing response. Operators avoid sudden large pressure changes causing problems. Gradual modifications maintain control throughout injection process. This methodical approach prevents most pressure-related issues.

Component Temperature Control

Temperature directly affects foam expansion rate and final properties. Cold materials react slowly with reduced expansion. Proper heating ensures consistent performance across all conditions. Professional equipment maintains precise temperature control.

Heating System Operation

Modern proportioners include integrated heating systems for both components. Electric heaters warm materials to optimal 110-130°F range. Temperature sensors monitor continuously ensuring consistent heat.

Materials circulate through heated hoses from proportioner to gun. This maintains temperature during delivery to injection point. Heat loss through hoses gets compensated by system design. Proper insulation reduces energy consumption maintaining temperature.

Temperature Control Elements:

  • Proportioner tank heaters: Warm stored materials
  • Circulation systems: Maintain even temperature distribution
  • Heated hoses: Prevent cooling during delivery
  • Temperature sensors: Monitor multiple points continuously
  • Digital displays: Show real-time temperature data
  • Automatic controls: Adjust heating maintaining setpoint

Cold weather operations require higher heater settings compensating for ambient conditions. Component temperatures may need 120-140°F for proper performance. Hot weather allows lower settings reducing energy consumption.

Startup procedures include warming materials before injection begins. Cold materials must reach operating temperature for predictable behavior. This typically requires 15-30 minutes of heating time. Rushing this process causes inconsistent results throughout project.

Impact on Expansion Characteristics

Temperature affects every aspect of foam expansion and performance. Reaction speed, expansion ratio, and cure time all vary with temperature. Operators must understand these relationships for precision control.

Warm materials (120-130°F) react faster with vigorous expansion. This suits applications requiring quick results and rapid lifting. Cold materials (80-100°F) react slower with reduced expansion. This provides more working time for complex injections.

Temperature Effects on Foam:

  • Reaction speed: Faster at higher temperatures
  • Expansion ratio: Increases with warmer materials
  • Cure time: Accelerates with heat
  • Foam density: Varies with temperature during reaction
  • Strength development: Affected by cure temperature
  • Flow characteristics: Better with optimal heat

Consistent temperature across both components ensures proper mixing ratios. Temperature imbalance causes foam defects and performance problems. Modern equipment maintains matching temperatures preventing these issues.

Foam formulations specify optimal temperature ranges for application. Operating outside these ranges compromises results significantly. Professional contractors strictly follow manufacturer specifications. This ensures foam performs as designed throughout project.

Foam Formulation Selection

Different foam types provide varying levels of expansion control. Density, reaction time, and expansion characteristics vary significantly. Selecting appropriate formulation for specific applications affects precision achievable.

Density and Expansion Ratios

Foam density directly correlates with expansion ratio and control. Low-density foams (2-3 PCF) expand 20-25 times providing maximum coverage. High-density foams (5-8 PCF) expand 10-15 times offering better control.

Lower expansion ratios provide more predictable lifting behavior. Less volume change means better precision during injection. Higher expansion requires more careful monitoring preventing over-lift.

Density-Based Selection:

  • 2.0-2.8 PCF: Maximum expansion, void filling, light loads
  • 3.0-4.0 PCF: Balanced properties, general commercial work
  • 4.0-5.0 PCF: Controlled expansion, industrial applications
  • 5.0-8.0 PCF: Minimal expansion, precision lifting, heavy loads

Industrial precision work typically uses 4.0-5.0 PCF formulations. This density range provides excellent strength with manageable expansion. Manufacturing facilities and automated warehouses benefit from this control.

Heavy-duty applications like airports require 5.0-8.0 PCF materials. Minimal expansion prevents uncontrolled lifting under massive loads. High density provides strength supporting extreme equipment weights.

Foam FormulationDensity (PCF)Expansion RatioReaction TimeCompressive StrengthTypical ApplicationsControl Level
Light Void Fill2.0-2.820-25x30-60 seconds60-80 PSILarge void filling, minimal liftModerate
Standard Lift3.0-4.018-20x20-40 seconds80-100 PSIGeneral commercial liftingGood
Precision Control4.0-5.015-18x15-30 seconds100-120 PSIIndustrial floors, tight tolerancesExcellent
Heavy-Duty5.0-6.012-15x10-20 seconds120-150 PSIHeavy equipment, high loadsExcellent
Extra Heavy-Duty6.0-8.010-12x10-15 seconds150-200 PSIAirports, extreme loadsSuperior

Reaction Time Considerations

Foam reaction time significantly impacts control during injection operations. Fast reactions (10-20 seconds) limit working time requiring quick decisions. Slow reactions (40-60 seconds) allow material flow before expansion.

Fast-reacting formulations suit small precise lifts with limited voids. Material expands quickly preventing lateral migration. Operators achieve targeted lifts with minimal waste. This works well for thin slabs and shallow injections.

Reaction Time Selection:

  • Fast (10-20 seconds): Small precise lifts, thin slabs
  • Medium (20-40 seconds): General applications, balanced control
  • Slow (40-60 seconds): Large voids, deep injection, flow requirements

Slow-reacting foams fill large voids more completely before expanding. Material flows farther from injection points spreading evenly. This ensures thorough void treatment with fewer injection holes. Large warehouse floors benefit from this characteristic.

Temperature affects reaction time significantly regardless of formulation. Cold conditions slow reactions extending working time. Hot conditions accelerate reactions reducing control window. Operators adjust expectations based on ambient temperature.

Operator Skill and Training

Equipment provides tools for precision but operator expertise determines results. Training and experience separate professional work from amateur attempts. Skilled technicians recognize problems before they become serious.

Critical Skills Development

Professional foam injection requires multiple specialized skills working together. Technical knowledge combines with practical experience enabling precision. Formal training provides foundation but experience builds mastery.

Operators must understand foam chemistry and expansion behavior. This knowledge guides decisions during injection operations. Recognizing normal versus abnormal foam response prevents problems immediately.

Essential Operator Skills:

  • Foam chemistry and expansion dynamics understanding
  • Laser monitoring system operation and interpretation
  • Pressure gauge reading and adjustment techniques
  • Component temperature management and control
  • Slab behavior recognition during lifting
  • Problem identification and immediate response
  • Equipment maintenance and troubleshooting
  • Safety protocol adherence consistently

Reading slab response requires experience recognizing subtle indicators. Crack pattern changes reveal stress during lifting. Joint movement shows differential elevation across sections. These observations guide real-time injection adjustments.

Soil condition assessment affects injection strategy significantly. Clay soils behave differently than sandy materials. Saturated conditions require different approaches than dry applications. Experienced operators adapt techniques based on these factors.

Decision-Making During Injection

Split-second decisions determine success or failure during operations. Operators process multiple data streams simultaneously making adjustments. Laser readings, pressure gauges, visual observation all provide input.

Foam breakthrough through surface cracks requires immediate response. Stopping injection prevents waste and surface contamination. Switching to adjacent holes continues treatment effectively. Quick recognition and response prevents major problems.

Real-Time Decision Examples:

  • Pressure spike: Stop injection, check for blockage
  • Rapid elevation rise: Reduce injection rate immediately
  • Uneven lift pattern: Adjust hole sequence or quantities
  • Foam breakthrough: Stop injection, seal crack, continue elsewhere
  • Slow response: Increase pressure or switch formulations
  • Adjacent movement: Reduce pressure, inject carefully

Unexpected slab responses demand immediate assessment and action. Over-lift tendency requires stopping injection before damage occurs. Under-lift situations need additional material or pressure increases. Operators must recognize which scenario exists instantly.

Equipment problems during operation need quick troubleshooting and correction. Pressure imbalances indicate component temperature differences or hose issues. Flow problems suggest material blockage or gun malfunctions. Fixing these quickly minimizes project delays.

Quality Control and Verification

Precision lifting requires comprehensive verification confirming accuracy achieved. Multiple measurement methods validate results meeting specifications. Documentation provides records for warranty and future reference.

Post-Injection Elevation Verification

Final elevation surveys confirm target heights achieved across project area. Multiple measurement points ensure uniform lift distribution. Laser levels provide accurate verification data.

Operators measure elevations at each monitoring point after injection completes. Comparison to pre-injection baseline shows actual lift achieved. Target elevation comparison reveals accuracy of results obtained.

Verification Procedures:

  • Laser level survey at all monitoring points
  • Comparison to pre-injection baseline measurements
  • Target elevation differential calculation
  • Adjacent area verification preventing over-lift
  • Documentation of all final elevations
  • Photographic evidence of completed work

Industrial facilities require verification meeting strict tolerances. Manufacturing floors may specify ±1/8 inch maximum deviation. Automated warehouses need ±1/4 inch for equipment operation. Meeting these specifications demands precise execution and verification.

Re-measurement 24 hours after injection confirms stability and settling. Most projects show no additional movement after cure completes. Any observed settlement indicates inadequate void filling requiring treatment.

Tolerance Achievement Documentation

Comprehensive documentation proves precision achieved during project execution. Elevation data, photographs, and equipment readings create permanent records. This information supports warranty coverage and facility management needs.

Pre-injection and post-injection elevation data gets compiled in spreadsheet format. Each monitoring point shows baseline, target, and final elevations. Deviation from target gets calculated and recorded for every location.

Documentation ElementPurposeRetention PeriodTypical FormatUsed By
Elevation Survey DataProve accuracy achievedPermanentSpreadsheet/PDFFacility management, warranty
Laser Calibration RecordsEquipment accuracy verification3-5 yearsCalibration certificateQuality assurance, audits
Material CertificationsFoam specification verificationDuration of warrantyManufacturer docsWarranty claims, compliance
Site PhotographsVisual project documentation5-10 yearsDigital imagesFuture reference, disputes
Injection QuantitiesMaterial usage trackingPermanentProject logCost verification, planning
Pressure/Temperature LogsProcess control documentation3-5 yearsEquipment printoutsQuality control, troubleshooting

Photographs document before, during, and after conditions at project sites. These provide visual evidence of settlement severity and correction achieved. Time-stamped images create chronological record of work performed.

Equipment logs show pressure, temperature, and volume data throughout injection. This information validates proper procedures followed during operations. Any deviations from normal parameters get documented explaining circumstances.

Conclusion

Precision foam expansion control combines advanced equipment with operator expertise delivering accuracy within 1/8 inch tolerance. Real-time laser monitoring tracks elevation changes continuously guiding injection decisions. Incremental small-quantity injections prevent over-lifting while ensuring adequate void filling. Pressure and temperature management maintains consistent foam behavior throughout operations. Foam formulation selection optimizes expansion characteristics for specific applications. Professional training and experience enable operators making split-second adjustments preventing problems. These integrated systems and skills separate professional concrete lifting companies from basic foam injection services. Industrial facilities, warehouses, and commercial properties benefit from precision impossible with traditional methods or inexperienced contractors. Need precision concrete lifting with documented accuracy? Contact us to discuss how controlled foam expansion addresses your facility's tight tolerance requirements effectively.

FAQs
Professional foam lifting achieves accuracy within 1/8 inch tolerance for industrial applications using laser monitoring and incremental injection techniques. Manufacturing facilities and automated warehouses routinely receive this precision level. Some specialized applications achieve 1/16 inch accuracy with optimal conditions. This precision exceeds traditional mudjacking by significant margins enabling applications requiring tight tolerances.
Real-time laser monitoring tracks elevation changes continuously allowing operators stopping injection exactly at target heights. Incremental small-quantity injections provide better control than large single applications. Air purge injection guns enable returning to previous holes for fine adjustments. These combined methods prevent over-lifting that damages joints or adjacent structures.
Ground-penetrating radar scans reveal void sizes before injection begins enabling volume calculations. Operators inject incrementally watching laser monitors for elevation response. Initial passes establish baseline then additional passes add material as needed. Experience guides quantity decisions but monitoring data drives actual injection amounts preventing waste.
Yes, operators adjust pressure, flow rate, and foam formulation based on soil conditions encountered. Dense clay soils receive higher pressure injections overcoming resistance. Loose sandy soils need lower pressure preventing excessive lateral spread. Saturated conditions require hydrophobic formulations maintaining proper expansion despite water presence.
Operators immediately stop injection when rapid unexpected elevation changes occur preventing over-lift damage. Air purge systems allow stopping and restarting at any point during process. The incremental injection approach limits foam quantities preventing uncontrolled expansion situations. Proper component temperature and pressure settings prevent most rapid expansion problems.
Component temperature (110-130°F optimal) directly affects reaction speed and expansion behavior throughout process. Cold materials react slowly reducing expansion rates and control. Warm materials react faster requiring quicker operator response. Modern proportioners maintain precise temperature ensuring consistent predictable foam performance regardless of ambient conditions.
Professional operators complete formal training covering foam chemistry, equipment operation, monitoring systems, and safety protocols. Hands-on experience under supervision develops skills recognizing slab response and making real-time adjustments. Most contractors require 40+ hours formal training plus 6-12 months supervised work before independent operation. Ongoing training updates skills as techniques evolve.
Yes, precision control becomes even more critical for thin slabs (4-6 inches) preventing breakthrough or cracking. Lower injection pressures and smaller foam quantities suit thin concrete. Fast-reacting formulations prevent lateral spread under thin sections. Monitoring must be more frequent due to reduced mass and faster response times.
Post-injection laser level surveys measure final elevations at all monitoring points comparing to targets. Deviations get calculated and documented proving specification compliance. Some projects include 24-hour re-measurement confirming stability. Comprehensive documentation with elevation data and photographs provides permanent accuracy records.
Operator inexperience causes most control problems through improper technique or slow problem recognition. Equipment malfunctions like temperature control failures affect foam behavior unpredictably. Unexpected subsurface conditions including unknown voids or utilities require immediate strategy adjustments. Rushing injection without proper monitoring frequently results in over-lifting or uneven results.
Find Out How We Can Engineer a Solution For You
Superior Polylift Logo
A Division of Superior Grouting
crossmenu linkedin facebook pinterest youtube rss twitter instagram facebook-blank rss-blank linkedin-blank pinterest youtube twitter instagram Skip to content
