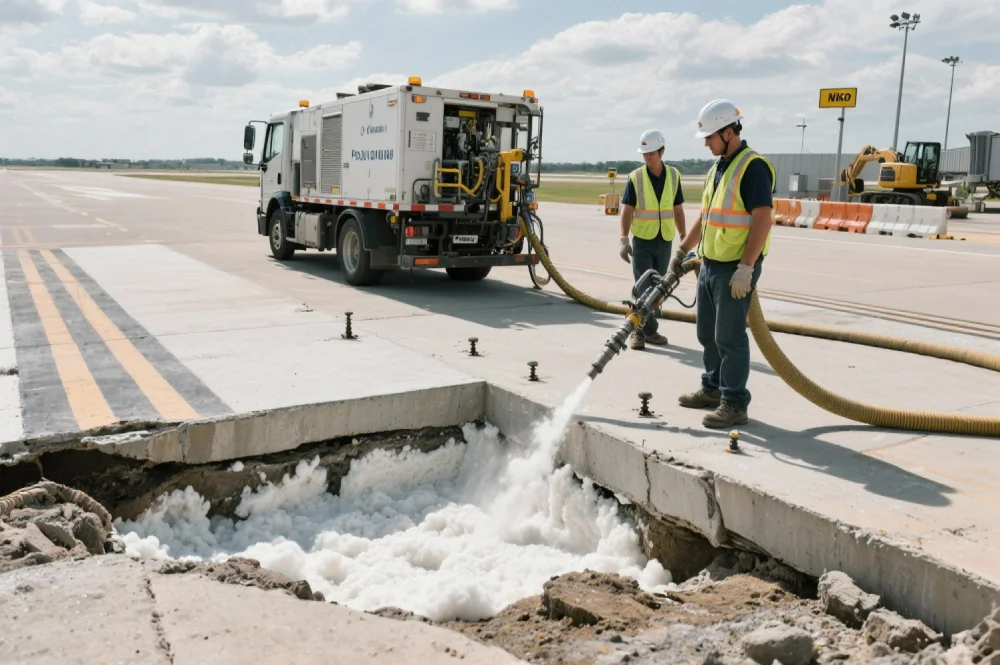

Polyurethane void filling restores pavement support in roads and airports by filling subsurface voids with 60-80 psi compressive strength material, enabling traffic within 30 minutes while meeting FAA and state DOT specifications for critical transportation infrastructure.
State departments of transportation and airport authorities manage pavement networks requiring continuous operation despite subsurface void development. Traditional reconstruction methods demand extended closures disrupting traffic flow and costing millions in delays. Polyurethane void filling technology provides rapid stabilization filling voids beneath highway pavements, interstate bridge approaches, and airport runways with minimal operational disruption.
This technical analysis examines load requirements for transportation infrastructure, material specifications meeting DOT and FAA standards, installation protocols minimizing closure duration, and performance verification ensuring long-term pavement stability under heavy traffic and aircraft loading conditions.
| Application | Typical Traffic/Aircraft Loading | Required Polyurethane Properties | Quality Verification Methods |
| Interstate highways and state routes | 80,000 lb truck axle loads (FHWA H-20 design); 12,000-20,000 lb single axle loads; repetitive loading 5,000-50,000 equivalent single axle loads annually | Compressive strength 60-80 psi per ASTM D1621 at 10% deformation; density 4-6 lb/ft³ per ASTM D1622; expansion ratio 15:1-20:1 providing structural support | Core sampling through pavement verifying foam density and complete void filling; ground-penetrating radar confirming uniform subsurface conditions; falling weight deflectometer testing measuring pavement structural capacity |
| Bridge approach slabs | Heavy truck traffic with impact loading from approach slab settlement; 80,000 lb design loads with dynamic amplification factors 1.3-1.5 | Compressive strength 70-90 psi for impact resistance; density 5-7 lb/ft³ providing maximum structural support; complete void filling preventing continued settlement | Elevation surveys before and after treatment verifying settlement arrest; core sampling confirming achieved density exceeds 5 lb/ft³; load testing with calibrated trucks measuring deflection response |
| Airport taxiways and aprons | Aircraft gear loads 20,000-50,000 lb per wheel; Boeing 737 main gear 38,000 lb; repetitive loading from daily aircraft movements | Compressive strength 80+ psi per FAA specifications; density 6-8 lb/ft³ for aircraft loading; closed-cell content 95%+ preventing fuel/hydraulic fluid absorption | FAA-approved testing including core extraction and laboratory analysis; heavy weight deflectometer testing simulating aircraft gear loads; visual inspection for surface deformation or pumping |
| Airport runways | Heavy aircraft gear loads: Boeing 777 main gear 225,000 lb distributed across 6 wheels; Airbus A380 main gear 330,000 lb distributed across 20 wheels | Compressive strength 90+ psi for extreme loading; density 7-9 lb/ft³ maximum structural capacity; rapid cure enabling runway reopening within critical 2-hour maintenance windows | Non-destructive testing using ground-penetrating radar; selective core sampling at approved locations during scheduled maintenance; continuous deflection monitoring post-treatment verifying load support adequacy |
| Municipal streets and arterials | Passenger vehicle and delivery truck traffic; occasional heavy vehicles; bus routes with repetitive loading at stops | Compressive strength 50-70 psi adequate for mixed traffic; density 3-5 lb/ft³ balancing performance and cost; standard expansion ratios 18:1-22:1 | Visual inspection for surface stability; spot core sampling at representative locations; pavement condition surveys documenting distress elimination post-treatment |
Subsurface voids develop beneath transportation pavements through multiple mechanisms requiring stabilization preventing pavement failure.
Water infiltration through pavement joints and cracks reaches base and subgrade materials causing progressive erosion. Fine soil particles wash away through base course voids leaving cavities beneath pavement slabs. This mechanism proves especially problematic in:
Pavement base materials degrade over decades of service reducing support capacity:
Aggregate breakdown from repeated loading crushes base course materials creating fines that wash away with water infiltration. Compressible base layers consolidate under traffic loading creating settlement and void spaces. Freeze-thaw action in northern climates degrades base materials through repeated expansion and contraction cycles.
Underground utility installations require pavement removal and trench excavation. Inadequate trench backfill compaction creates subsurface voids that develop into pavement settlement. This problem affects:
Karst geology or piping erosion creates subsurface cavities beneath transportation infrastructure. Progressive void growth eventually causes pavement collapse if left untreated. State highway departments identify developing sinkholes through pavement condition surveys enabling proactive void filling before catastrophic failure.
Polyurethane void filling materials for roads and airports must meet stringent specifications ensuring adequate performance under traffic and aircraft loading.
Transportation infrastructure requires polyurethane compressive strength adequate supporting design loads with safety factors:
Compressive strength depends on achieved foam density. Engineers specify density ranges ensuring adequate strength: 4-5 lb/ft³ produces 60-70 psi, 5-6 lb/ft³ produces 70-80 psi, and 6-8 lb/ft³ produces 80-100+ psi compressive capacity.
Transportation applications require polyurethane maintaining properties through severe environmental exposure:
Freeze-thaw resistance: ASTM D6944 testing verifies property retention through 300+ freeze-thaw cycles equivalent to 15-20 years northern climate exposure. Polyurethane's closed-cell structure prevents water absorption eliminating primary freeze-thaw damage mechanism. State DOT specifications typically require less than 5% strength loss after freeze-thaw testing.
Chemical resistance: Airport applications expose polyurethane to jet fuel, hydraulic fluid, and deicing chemicals. Material formulations resist degradation from petroleum products and glycol-based deicers. Testing per ASTM D1308 verifies chemical compatibility before airport application approval.
UV stability: Exposed pavement edges or temporary pavement gaps expose foam to sunlight. UV inhibitors in formulations prevent photodegradation during short-term exposure before pavement restoration. Long-term applications include pavement coverage protecting foam from continuous UV exposure.
Temperature extremes: Transportation infrastructure experiences temperatures from -30°F in northern winter conditions to 140°F+ in summer pavement environments. Polyurethane maintains properties across this range without softening at high temperatures or becoming brittle at low temperatures.
Transportation agencies maintain approved materials lists for pavement void filling applications:
State departments of transportation issue qualified products lists including polyurethane formulations meeting specifications. Products undergo laboratory testing and field demonstration projects before approval. Engineers specify approved materials ensuring compliance with agency standards and warranty provisions.
Federal Aviation Administration Advisory Circular 150/5370-10 establishes standards for airport pavement materials including void filling products. FAA approval requires comprehensive testing demonstrating adequate strength, durability, and compatibility with existing airport pavement materials. Major commercial airports typically require FAA-approved materials for runway and taxiway applications.
Rapid installation with minimal closure duration proves critical for transportation infrastructure void filling projects.
Successful highway and airport projects require comprehensive closure planning coordinating void filling with traffic management:
Highway applications utilize rolling closures limiting impact to one or two lanes while maintaining traffic flow in remaining lanes. Night work during low-traffic periods reduces road user delay costs. Interstate projects coordinate with state DOT traffic operations centers managing regional traffic patterns.
Airport operations schedule void filling during overnight maintenance windows when aircraft movements cease or reduce substantially. Runway projects require coordination with air traffic control establishing closure schedules. Critical runway maintenance windows typically limit closures to 2-4 hours requiring extremely rapid void filling and pavement reopening.
Work zone traffic control follows Manual on Uniform Traffic Control Devices standards establishing proper warning, transition, and buffer zones. Adequate advance warning prevents sudden lane changes reducing crash risk in work zones.
Polyurethane's fast cure time enables installation procedures minimizing closure duration:
Access point drilling uses small-diameter holes (5/8-inch to 1-inch) through pavement reaching void depth. Rotary hammer drills create access in minutes compared to saw-cutting removal panels. Multiple access points at 8-12 foot spacing ensure complete void coverage beneath pavement sections.
High-speed injection delivers polyurethane rapidly through multiple simultaneous injection points. Commercial equipment injects 3-8 gallons per minute enabling large void filling in minimal time. Operators monitor multiple injection locations simultaneously using pressure gauges and visual indicators.
Sequential zone treatment divides project areas into manageable zones allowing traffic through completed sections while continuing treatment in remaining areas. This rolling approach maintains some traffic flow throughout projects reducing total closure impact.
Expansion pressure monitoring during injection prevents excessive foam pressure lifting pavement slabs:
Pressure transducers at injection points track hydraulic resistance as foam expands beneath pavements. Initial low pressure (2-5 psi) indicates open void space. Pressure increases to 8-15 psi during active void filling. Operators stop injection when pressure exceeds 15-20 psi preventing pavement displacement.
Visual monitoring by trained personnel positioned along pavement sections detects any slab movement during injection. Radio communication enables immediate injection cessation if lifting observed. Foam expansion stops within seconds after injection ceases preventing continued lifting.
Laser levels or electronic monitoring systems track pavement elevation changes during injection in critical applications. Automated shutoff systems halt injection if elevation change exceeds 0.1-0.2 inches preventing unacceptable pavement distortion.
Polyurethane cure time proves critical for transportation applications requiring rapid return to service:
State DOT and FAA specifications establish minimum cure times before traffic loading based on temperature and loading conditions. Conservative agencies require 2-4 hour closures ensuring adequate cure under all conditions while aggressive schedules enable 1-hour reopening in favorable conditions.
Polyurethane void filling addresses multiple pavement problems in state highway and interstate systems.
Bridge approach slabs experience settlement from embankment consolidation or soil erosion creating voids beneath slabs. This settlement creates:
Polyurethane void filling restores approach slab support preventing continued settlement. Installation proceeds through pavement access points without removing approach slabs. Foam fills voids beneath slabs reestablishing uniform support. Treatment extends approach slab service life 10-15 years avoiding costly replacement.
Concrete pavement joints develop voids beneath slab edges from pumping action forcing water and soil through joints. Loss of edge support causes:
Polyurethane injection beneath joint edges restores support eliminating faulting. Installation uses angled drilling accessing voids directly beneath joint edges. Foam fills cavities preventing continued pumping and faulting development.
Localized pavement settlement from base failure or utility trench consolidation creates:
Polyurethane void filling eliminates settlement by filling subsurface voids and densifying weak base materials. The expansion pressure compacts surrounding soils while filling voids providing improved support. This combined stabilization effect arrests settlement preventing continued pavement deterioration.
State highways traversing karst geology develop sinkholes from limestone bedrock dissolution. Polyurethane void filling provides proactive stabilization when ground-penetrating radar or pavement condition surveys identify developing subsidence. Treatment prevents catastrophic sinkhole collapse maintaining highway safety and avoiding emergency repairs costing millions in reconstruction and traffic delays.
Airport pavements require specialized void filling procedures meeting Federal Aviation Administration standards and accommodating operational constraints.
Runway maintenance windows prove extremely limited requiring rapid void filling completion:
Closure scheduling coordinates with air traffic control establishing 2-4 hour maintenance windows during overnight low-traffic periods. Commercial airports maintain schedules allowing only brief interruptions in runway availability. Void filling crews mobilize rapidly completing treatment within allocated time.
High-volume injection uses multiple proportioning units simultaneously filling extensive void networks quickly. Runway projects may require 500-1,000+ gallons polyurethane demanding efficient high-volume placement. Crews of 8-12 personnel operate multiple injection points simultaneously maximizing production rates.
Non-destructive access minimizes pavement disturbance using small-diameter drill holes rather than saw-cutting panels. This approach reduces restoration work enabling faster runway reopening. Holes receive rapid patching using fast-setting materials meeting FAA specifications.
Taxiway concrete pavements develop joint voids from repetitive aircraft gear loading:
Boeing 737 main gear loads of 38,000 lb per wheel concentrate at taxiway joints during aircraft turns creating pumping action. This repetitive loading erodes base materials beneath joint edges causing load transfer loss and joint faulting.
Polyurethane void filling restores joint support preventing faulting development. Treatment timing proves critical—proactive void filling when joints show early pumping prevents extensive damage requiring panel replacement. Foam injection reestablishes load transfer capacity extending taxiway service life.
Aircraft parking aprons experience settlement from subgrade consolidation under static aircraft loads:
Wide-body aircraft parking for extended periods impose sustained loads consolidating poorly compacted subgrade materials. Settlement creates drainage problems, pavement cracking, and operational issues for ground service equipment.
Polyurethane void filling stabilizes apron areas eliminating settlement. Installation proceeds during overnight periods when aircraft clear parking positions. Multiple access points throughout settlement areas ensure complete void filling and soil densification providing uniform support.
Pavement edges along grassed areas experience support loss from erosion or edge settlement:
Erosion from stormwater runoff undermines pavement edges creating voids. Settlement at construction joints between paved and unpaved areas develops gaps beneath pavement. Loss of edge support causes edge cracking and deterioration.
Polyurethane injection along pavement edges fills voids and provides lateral support. Treatment prevents progressive edge failure extending pavement service life. This proactive maintenance proves far more economical than edge reconstruction.
Transportation agencies require comprehensive testing verifying successful void filling and adequate long-term performance.
Core extraction through pavement provides direct verification of foam placement and achieved density:
Diamond coring removes samples 4-6 inches diameter extending through pavement and into foam-filled zones. Cores verify foam reached planned depth and filled voids completely. Laboratory analysis per ASTM D1622 measures foam density confirming achievement of specified values (typically 4-6 lb/ft³ for highways, 6-8 lb/ft³ for airports).
Compressive strength testing per ASTM D1621 verifies structural capacity. Samples undergo loading to 10% deformation measuring required stress. Results must meet or exceed specified values (60-80 psi highways, 80-100+ psi airports) ensuring adequate traffic or aircraft support.
Core sampling frequency follows agency specifications: typically one core per 1,000 square feet treated area with minimum three cores per project. Airport projects require higher sampling density ensuring FAA compliance documentation.
Non-destructive ground-penetrating radar scanning verifies subsurface uniformity after void filling:
GPR surveys conducted post-treatment compare results to pre-treatment scans documenting void locations. Successful treatment shows uniform subsurface signatures indicating complete void filling without remaining cavities. Anomalies suggesting incomplete filling trigger supplemental injection achieving complete stabilization.
GPR provides 100% coverage unlike core sampling limited to discrete locations. This comprehensive assessment ensures void filling success throughout entire project area not just sampled locations.
Pavement deflection testing measures structural response to loading verifying adequate support after void filling:
Falling weight deflectometer (FWD) applies controlled impact loads measuring pavement deflection. Testing before and after void filling quantifies structural improvement. Reduced deflection after treatment confirms successful support restoration. State DOT structural evaluation procedures establish acceptance criteria based on deflection measurements.
Heavy weight deflectometer (HWD) used for airport pavements simulates aircraft gear loads. Testing verifies pavement structural capacity meets FAA requirements for aircraft operations. Acceptance requires deflection values within specified limits ensuring safe aircraft operations.
Rolling deflectometer provides continuous deflection measurement along project length identifying any weak areas requiring additional treatment. This technology enables 100% project coverage verifying uniform structural capacity.
Transportation agencies conduct periodic monitoring assessing void filling durability:
Pavement condition surveys at 1, 3, and 5 year intervals document continued stability. Surveys identify any settlement recurrence, new cracking, or other distress indicating treatment problems. Stable conditions over monitoring periods confirm successful void filling providing expected service life extension.
Ground-penetrating radar surveys repeated periodically verify subsurface conditions remain stable. Comparison to baseline post-treatment scans identifies any void reformation requiring retreatment. Most installations show stable conditions decades after treatment confirming polyurethane durability.
| Project Type | Typical Reconstruction Cost | Polyurethane Void Filling Cost | Cost Savings | Closure Duration Comparison | Service Life Extension |
| Interstate bridge approach (100 ft length, 40 ft width) | $180,000-$250,000 including approach slab removal, embankment reconstruction, new slab placement, and traffic control | $35,000-$55,000 including mobilization, void filling, and minor surface repairs | 70-80% cost savings; $125,000-$195,000 avoided expense | Reconstruction: 2-4 weeks full closure; Void filling: 8-16 hours lane closures | 10-15 years before reconstruction required; delays major expense extending budget effectiveness |
| State highway settlement repair (500 ft length, 24 ft width) | $120,000-$180,000 for full-depth pavement reconstruction including base replacement and new pavement | $28,000-$42,000 for void filling stabilization with surface patching | 65-75% savings; $80,000-$140,000 avoided cost | Reconstruction: 1-2 weeks full closure; Void filling: 2-3 nights lane closures | 12-20 years additional service from existing pavement; postpones reconstruction until pavement surface requires renewal |
| Airport taxiway joint repair (10 joint locations, 50 ft per joint) | $850,000-$1,200,000 for panel replacement including sawcutting, removal, base repair, and new concrete placement | $125,000-$180,000 for void filling beneath joints with minimal pavement removal | 75-85% savings; $675,000-$1,020,000 avoided expense | Reconstruction: 4-6 weeks with extensive taxiway closures affecting operations; Void filling: 5-8 overnight closures (2-4 hours each) | 8-12 years joint life extension; maintains pavement structural integrity avoiding premature reconstruction |
| Airport apron settlement (30,000 sq ft area) | $2,100,000-$3,000,000 for complete apron reconstruction including base replacement and new pavement | $280,000-$420,000 for void filling and settlement correction | 80-87% savings; $1,680,000-$2,580,000 avoided cost | Reconstruction: 8-12 weeks requiring aircraft parking relocation; Void filling: 2-3 weeks overnight operations with daily aircraft use | 10-15 years stabilized service; eliminates drainage problems and operational issues from settlement |
| Municipal street utility trench settlement (200 ft length, 30 ft width) | $65,000-$95,000 for pavement removal, trench re-excavation, proper compaction, and new pavement | $12,000-$18,000 for void filling through existing pavement | 75-82% savings; $47,000-$77,000 avoided expense | Reconstruction: 1-2 weeks street closure; Void filling: 1-2 nights with daily traffic | 15-25 years stability preventing continued settlement; addresses root cause without removing functional pavement |
Economic analysis demonstrates polyurethane void filling provides substantial lifecycle value for transportation infrastructure:
Direct cost savings of 65-87% compared to reconstruction prove significant for agency budgets. Projects costing $150,000-$300,000 for reconstruction reduce to $30,000-$60,000 for void filling enabling agencies to address more locations with limited budgets.
Indirect costs from traffic disruption often exceed direct construction costs. Road user delay costs for major highway closures reach $50,000-$200,000 per day. Polyurethane's rapid installation reducing closures from weeks to hours/days eliminates millions in road user delay costs over project lifecycles.
Service life extension of 10-20 years delays major reconstruction expenditures enabling strategic budget planning. Agencies implement void filling as interim treatment maintaining pavements until programmed reconstruction. This staged approach optimizes budget utilization addressing immediate problems while planning major renewals.
Polyurethane void filling provides effective solution for transportation infrastructure stabilization meeting stringent load requirements for highway and airport applications. Material specifications delivering 60-100+ psi compressive strength support heavy truck traffic and aircraft gear loads while maintaining properties through severe environmental exposure including freeze-thaw cycling and chemical contact.
Rapid cure times enabling traffic reopening within 30-60 minutes prove critical for transportation applications where extended closures impose unacceptable operational and economic impacts. Installation procedures using minimal pavement access, high-speed injection, and real-time monitoring minimize disruption while ensuring proper void filling without pavement damage.
Performance verification through core sampling, ground-penetrating radar surveys, and deflection testing confirms successful stabilization meeting state DOT and FAA standards. Economic analysis demonstrates 65-87% cost savings compared to reconstruction while extending pavement service life 10-20 years. These combined benefits establish polyurethane void filling as optimal solution for transportation infrastructure requiring rapid, effective, and economical subsurface stabilization.For expert void filling services in transportation infrastructure, contact Superior PolyLift.
