How Polyurethane Foam Expands to Lift Heavy Concrete Slabs

Polyurethane foam expands through a rapid chemical reaction between isocyanate and polyol components, creating 15-20 times the original volume within seconds. This expansion fills voids beneath concrete slabs, compacts loose soil, and generates hydraulic lifting force capable of raising heavy industrial concrete with precision control to within 1/8 inch accuracy.

Settled concrete slabs create serious problems for industrial facilities. Traditional repair methods require extensive downtime and full reconstruction. Modern polyurethane foam concrete lifting offers a faster alternative. This advanced technique uses expanding foam to raise and stabilize settled slabs with minimal disruption.

Key Takeaway

• Chemical reaction precision: Two-part polyurethane system mixes isocyanate and polyol at 1:1 ratio, generating exothermic reaction within 5-10 seconds that produces carbon dioxide gas, creating closed-cell foam structure expanding 15-20 times original volume with controlled temperature (110-130°F) ensuring consistent performance
• Expansion control mechanisms: Real-time laser monitoring tracks elevation changes to 1/16 inch accuracy, incremental injection prevents over-lifting, operators adjust flow rates (2-8 lbs/min) and pressure (100-300 PSI) based on slab response, achieving precision within 1/8 inch tolerance critical for manufacturing and automated warehouse applications
• Industrial load-bearing capacity: Cured polyurethane foam achieves 60-150 PSI compressive strength depending on density (2-8 PCF), confined space effect increases strength up to 79% in tight voids, supports airport runways carrying 50,000+ lb wheel loads and warehouse floors with heavy forklift traffic
• Rapid cure advantages: Foam cures in 15-30 minutes versus mudjacking's 24-72 hours or concrete replacement's 28 days, surfaces support full loads within one hour, minimizes operational downtime from weeks to hours, critical for 24/7 distribution centers and manufacturing facilities
• Soil densification benefits: Expanding foam fills every void beneath slabs, compacts loose soil particles through outward pressure, increases subgrade load-bearing capacity, follows tree-root pattern through weak zones, prevents future settlement when original causes are addressed through proper assessment
• Lightweight material advantages: Foam weighs 2-4 PCF compared to concrete's 150 PCF and mudjacking grout's 100-120 PCF, prevents additional stress on compromised soils, closed-cell structure resists water absorption, provides 50+ year service life without degradation from moisture or chemicals

Understanding Polyurethane Foam Chemistry

The chemical foundation of foam concrete lifting determines performance characteristics. Two liquid components react to create expanding polyurethane with specific properties. Understanding this chemistry explains how foam achieves exceptional lifting capabilities.

The Two-Part Chemical System

Polyurethane foam forms through a rapid chemical reaction. Two liquid components combine at the injection point.

Component A (Isocyanate):

• Contains diisocyanates that initiate polymerization
• Creates the cellular foam structure through reaction
• Requires precise temperature control (110-130°F)
• Hazardous in raw form but inert when cured
• Mixed at exact 1:1 ratio with Component B

Component B (Polyol Blend):

• Includes polyols forming the foam matrix
• Contains blowing agents generating gas expansion
• Features catalysts controlling reaction speed
• Includes surfactants stabilizing cell structure
• Temperature-sensitive requiring heated storage

The components react within seconds when mixed. This generates heat through exothermic process. The reaction produces carbon dioxide gas. This gas creates the cellular structure that enables lifting.

Specialized equipment ensures proper mixing ratios. Pressure gauges monitor both component flows. Temperature sensors verify optimal conditions. Any deviation compromises foam strength and expansion.

How the Expansion Process Works

The chemical reaction happens in distinct stages. Understanding these stages explains how foam lifts concrete effectively.

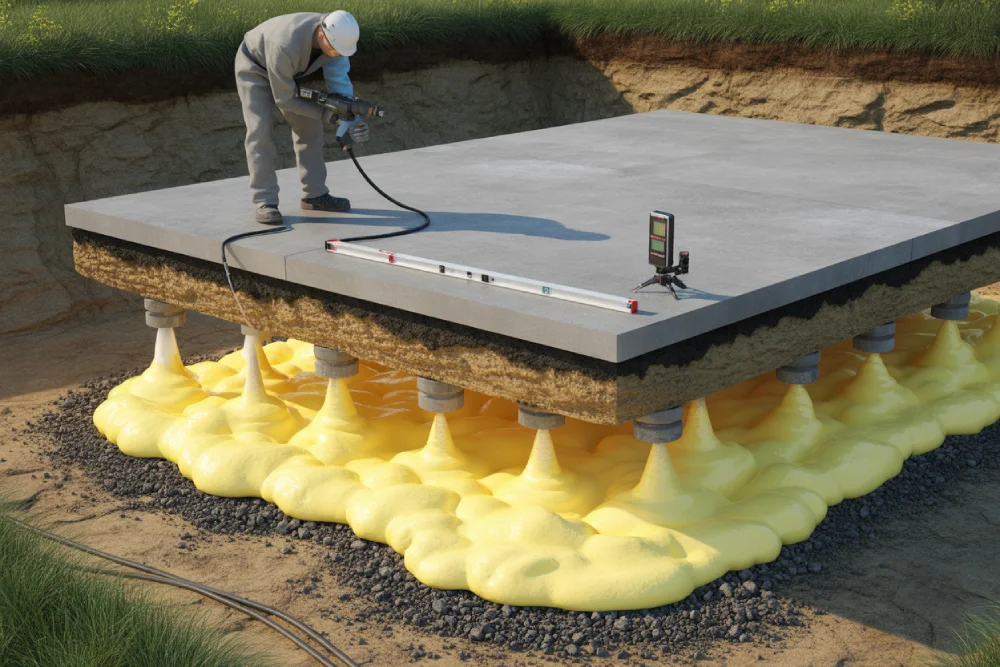

First, the components mix at the injection gun. High-pressure hoses deliver each component separately. They combine at the gun nozzle under pressure. Mixing occurs in milliseconds as material exits.

Second, the exothermic reaction begins immediately. Heat generation accelerates the polymerization process. Carbon dioxide forms within the mixture rapidly. The foam starts expanding within 5-10 seconds.

Third, the foam seeks paths of least resistance. It flows into voids beneath the slab easily. Loose soil gets compressed by expansion pressure. The expanding foam fills every cavity systematically.

Finally, the foam cures into a rigid structure. The closed-cell formation resists moisture infiltration. The material becomes chemically inert and non-toxic. Full cure takes 15-30 minutes depending on conditions.

Expansion Characteristics and Control

Controlled expansion separates professional foam lifting from older methods. Modern formulations and monitoring systems enable precision impossible with traditional concrete repair. These characteristics make foam ideal for industrial applications demanding tight tolerances.

Volume Expansion Ratios

Polyurethane foam expands dramatically from its liquid state. This expansion creates the lifting force needed for heavy concrete.

Typical Expansion Rates:

• 15-20 times original volume for standard applications
• 25-30 times for low-density void filling foams
• 10-15 times for high-density structural foams
• Expansion begins within 5-10 seconds of mixing
• Peak expansion reached in 30-60 seconds total
• Controlled by chemical formulation and temperature

The expansion ratio determines lifting capacity and coverage. Higher expansion fills larger voids with less material. Lower expansion provides denser support for heavy loads. Contractors select formulations based on project needs.

Temperature affects expansion rates significantly. Cold conditions slow reactions and reduce expansion. Hot conditions accelerate reactions and increase expansion. Component heating to 110-130°F ensures consistency regardless of weather.

Precision Control Methods

Modern foam lifting achieves exceptional accuracy through advanced monitoring. Real-time data enables precise control during injection operations.

Operators use laser leveling systems for continuous tracking. These create reference planes across work areas. Receivers on slab surfaces detect elevation changes. Digital readouts show movements to 1/16 inch accuracy.

Multiple monitoring points cover large areas simultaneously. This prevents uneven lifting across project zones. Operators see slab response in real time. Adjustments happen before problems develop.

Incremental injections prevent over-lifting completely. Small foam quantities are added systematically at each hole. The slab response gets monitored constantly during injection. Injection stops immediately when target height is reached.

This control proves critical for industrial applications. Manufacturing facilities need ±1/8 inch tolerances for equipment. Automated warehouses require level floors for guided vehicles. Airport runways demand precise drainage slopes for safety.

Load-Bearing Strength for Heavy Applications

Industrial concrete must support tremendous loads daily. Polyurethane foam delivers exceptional strength meeting demanding requirements. Performance data from airports, warehouses, and highways proves foam's capabilities under extreme conditions.

Compressive Strength Specifications

Cured foam achieves impressive compressive strength despite lightweight nature. Density and confinement determine final load capacity.

Standard foam formulations achieve 60-100 PSI compressive strength. High-density formulations exceed 120-150 PSI when fully cured. Specialized products for extreme loads support 150-200 PSI.

The confined space effect enhances strength significantly. When foam expands in tight voids, surrounding soil compresses it. Testing shows 31% strength gain at 25% confinement. At 75% confinement, strength increases 79% above base values.

This makes foam ideal for heavy-load applications. Airport runways supporting jumbo jets use polyurethane foam. Warehouse floors carrying constant forklift traffic rely on foam stabilization. Highway slabs bearing 80,000-pound trucks get foam treatment.

Load capacity exceeds 10,000 pounds per square foot for high-density foams. This surpasses requirements for most industrial applications. Proper installation ensures adequate support for extreme loads.

Industrial Performance Data

Real-world applications prove foam's capabilities across diverse conditions. Projects demonstrate strength and durability under actual service loads.

Polyurethane foam fills voids completely beneath slabs. It densifies weak soils through expansion pressure. The foam creates stable support without adding excessive weight. This prevents further settlement from soil compression issues.

The Foam Injection Process Explained

Professional concrete lifting follows systematic procedures ensuring consistent results. Each step builds on previous work creating stable foundations. Understanding the process helps facility managers plan projects effectively.

Pre-Injection Site Assessment

Professional lifting begins with thorough evaluation of conditions. This determines optimal injection strategy for each unique situation.

Ground-penetrating radar detects subsurface voids beneath slabs. Soil borings reveal subgrade conditions and composition. Water table measurements affect material selection and approach. Utility location prevents drilling conflicts and service damage.

Surface inspection identifies settlement patterns requiring treatment. Crack analysis shows movement direction and magnitude. Joint displacement indicates differential settlement severity. Previous repairs get documented and assessed for effectiveness.

Assessment Deliverables:

• Settlement severity mapping showing elevation differences
• Void location and size estimates from GPR scans
• Soil condition report with bearing capacity data
• Utility location drawings preventing conflicts
• Load requirement analysis for equipment and traffic
• Recommended foam density and injection strategy

Strategic Hole Placement

Small injection holes provide foam access beneath slabs. Proper placement ensures complete void filling and even lifting.

Hole Spacing Factors:

• Slab thickness (thicker slabs allow wider spacing)
• Settlement severity (heavier settlement needs closer holes)
• Void size and distribution patterns from GPR
• Reinforcement location and density avoiding damage
• Load concentrations requiring extra support
• Access constraints from equipment or structures

Standard holes measure 5/8 inch diameter for most applications. This is much smaller than mudjacking's 1.5-2 inch holes. Typical spacing ranges 4-6 feet for uniform settlement patterns. Void-focused patterns concentrate around detected cavities from scanning.

Drilling procedures maintain quality control throughout operations. Depth gauges ensure consistent penetration through slabs. Vacuum extraction removes cuttings immediately for cleanliness. Reinforcement gets detected and avoided when possible. Every hole location gets documented on as-built drawings.

Controlled Foam Injection

The injection phase requires skilled operators managing multiple variables. Simultaneous control of pressure, flow, and monitoring ensures precision.

Two-part foam components heat to 110-130°F for optimal reaction. This ensures consistent performance regardless of weather conditions. The 1:1 mixing ratio gets monitored constantly during application. Any deviation affects foam performance and strength significantly.

Injection starts at lowest elevation points where settlement is greatest. Operators work systematically toward higher areas methodically. This prevents foam migration to already-lifted sections. Multiple passes add material as needed for target heights.

Injection Parameters by Application:

Laser levels track elevation changes continuously during injection. Operators adjust injection based on real-time slab response. Pressure limits prevent cracking or heaving from excessive force. Adjacent structures get protected from expansion forces.

Soil Stabilization Through Foam Expansion

Foam expansion does more than fill voids beneath slabs. It actively improves soil conditions creating stable foundations. This dual action addresses settlement causes rather than just symptoms.

Densification Mechanisms

As foam expands, it pushes outward on surrounding soil particles. Loose particles get compressed together increasing density. Soil density increases substantially from this pressure. Load-bearing capacity improves significantly after treatment.

The expansion follows a tree-root pattern through soil. Foam finds weak zones and fills them systematically. It travels through fissures and cavities beneath slabs. The cured foam creates a solid support matrix.

Densification Benefits:

• Increased soil density from compression forces
• Improved load-bearing capacity for foundations
• Void elimination preventing future settlement
• Moisture resistance from closed-cell structure
• Long-term stability from permanent filling
• Enhanced performance in weak soil conditions

Expansion pressure can reach 50-100 PSI outward on soil. This compacts loose materials effectively around foam. The effect extends several inches beyond foam location. Overall soil improvement exceeds just filled volume.

Soil Type Considerations

Different soils respond uniquely to foam treatment and require tailored approaches. Professional assessment determines optimal strategies for each condition.

Clay Soils:

• Prone to expansion and contraction with moisture
• Require moisture-resistant foam formulations
• Benefit from ongoing monitoring after treatment
• May need chemical stabilization methods combined
• Respond well to hydrophobic foam products

Sandy Soils:

• Lack natural cohesion between particles
• Gain binding from foam injection and expansion
• Respond well to compaction forces from expansion
• Improve load-bearing capacity significantly after treatment
• Require proper void filling for stability

Loam and Mixed Soils:

• Offer balanced characteristics for foam treatment
• Usually respond predictably to standard applications
• Provide good long-term stability after injection
• Support standard foam formulations effectively
• Present fewer challenges than pure clay or sand

Deep injection techniques address subsurface problems below slabs. Foam can reach depths of 30 feet for deep stabilization. This capability handles deep layer consolidation issues. Groundwater issues get addressed effectively through hydrophobic foams.

Industrial Applications and Performance

Polyurethane foam serves diverse infrastructure requiring minimal downtime. Different facilities present unique challenges and requirements. Understanding these applications helps managers evaluate foam lifting suitability.

Warehouse Floor Restoration

Distribution centers demand level floors for equipment operation and safety. Settlement creates serious operational problems and efficiency losses.

Materials handling equipment requires flat surfaces for proper function. Forklifts and reach trucks need smooth operation paths. Automated guided vehicles demand tight tolerances for navigation. Uneven floors damage expensive equipment and reduce efficiency.

Warehouse Floor Benefits:

• Immediate load capacity for 24/7 operations without delays
• Minimal disruption to inventory movement and order fulfillment
• Long-term stability under repetitive heavy traffic patterns
• Precision leveling for automated systems (±1/8 inch tolerance)
• Rapid completion during off-shift hours or weekends
• No equipment relocation required during treatment

Loading docks need proper elevation at trailer interface points. Floor joints require matching heights preventing trip hazards. Aisle settlement from heavy traffic gets corrected permanently. Rack support areas bearing concentrated loads get stabilized effectively.

Projects complete during off-shift hours minimizing disruption. Facilities maintain continuous operation during treatment. Downtime gets minimized to 6-10 hours typically. Normal operations resume immediately after hole patching.

Airport Infrastructure Repairs

Airport concrete supports extreme loads requiring exacting standards. Runways and taxiways demand exceptional performance and durability.

Aircraft wheel loads exceed 50,000 pounds on modern jets. Settlement creates unacceptable ride quality for pilots. Joint displacement damages expensive landing gear components. Drainage slopes must meet FAA specifications exactly.

Foam lifting addresses these challenges effectively and rapidly. Small injection holes don't compromise slab structural integrity. Rapid cure allows immediate aircraft operations after treatment. Strength supports jumbo jet traffic without degradation over time.

Airport Application Advantages:

• FAA compliance and specification adherence guaranteed
• Weather-dependent work window flexibility for scheduling
• Immediate aircraft loading capability after 30 minutes
• Precise drainage slope maintenance for water management
• De-icing chemical resistance from closed-cell structure
• No foreign object debris from small hole sizes

Taxiway repairs complete during overnight closures between flights. Apron slabs get lifted between flight schedules efficiently. Hangar floors receive treatment without equipment relocation. Cargo ramps restore proper grades quickly for safe operations.

Highway and Road Rehabilitation

Concrete highways develop settlement from various causes over time. Traffic volumes prevent extended closures requiring rapid repairs.

Subgrade erosion creates voids beneath highway slabs. Joint separation allows water infiltration accelerating problems. Load transfer deteriorates at cracks reducing performance. Ride quality suffers from elevation changes and faulting.

Polyurethane foam injection restores highway performance effectively. Work occurs during overnight hours minimizing traffic impact. Lanes reopen by morning rush hour without delays. Traffic disruption gets minimized dramatically versus replacement.

Highway Application Benefits:

• Overnight completion with morning traffic resumption
• Lane-by-lane approach maintaining partial traffic flow
• Load transfer restoration at joints and cracks
• Erosion prevention from waterproof foam properties
• 20-30 year service life under heavy truck traffic
• Cost savings of 50-70% versus full replacement

The lightweight foam prevents additional subgrade stress accumulation. Waterproof properties resist future erosion from infiltration. Durability withstands heavy truck traffic and freeze-thaw cycles. Service life extends 20-30+ years with proper application.

Advanced Foam Formulations and Properties

Modern polyurethane formulations offer specialized characteristics for different conditions. These advanced properties expand foam lifting applications significantly. Understanding formulation options helps optimize project outcomes.

Hydrophobic Characteristics

Water resistance proves critical for long-term performance and durability. Advanced formulations resist moisture indefinitely under service conditions.

Hydrophobic polyurethane maintains properties in saturated soil conditions. The closed-cell structure prevents water absorption completely. No degradation occurs from groundwater exposure over decades. Freeze-thaw cycles cause no damage or deterioration.

This water resistance protects against erosion beneath slabs. Soil beneath treated slabs stays stable long-term. Washout cannot occur like with cementitious grout materials. Performance remains consistent for 50+ years in service.

Moisture Resistance Benefits:

• No strength loss in wet or saturated conditions
• Prevents erosion and void formation from water
• Eliminates freeze-thaw damage in cold climates
• Protects from de-icing chemicals on roadways
• Resists groundwater flow and high water tables
• Maintains dimensional stability despite moisture exposure

High water table conditions don't limit foam application. Foam works effectively even below water tables. Active groundwater flow doesn't affect curing process. Submerged applications perform successfully in challenging conditions.

Variable Density Options

Different applications require different foam properties and characteristics. Contractors select formulations based on specific project needs.

Low-density foams (2.0-2.8 PCF) excel at large void filling applications. They minimize weight on compromised soils effectively. Expansion ratios reach 20:1 or higher for coverage. Coverage area per pound increases significantly with these formulations.

Medium-density foams (4.0 PCF) balance multiple project requirements. They provide good strength and reasonable expansion ratios. Most commercial applications use this density range. Cost-effectiveness remains excellent for typical projects.

High-density foams (5.0-8.0 PCF) deliver maximum compressive strength. Airport runways and heavy industrial floors benefit most. Compressive strength exceeds 150 PSI when fully cured. Load capacity handles extreme requirements without degradation.

Reaction Time Variations

Foam formulations offer different reaction speeds for optimization. This allows customization for specific site conditions.

Fast-Reacting Formulations:

• Cure in 10-15 minutes to working strength
• Suit small area lifts and quick repairs
• Provide rapid results minimizing downtime
• Work well in cold weather conditions
• Ideal for emergency repairs requiring speed

Standard Formulations:

• Cure in 15-30 minutes for most applications
• Handle typical commercial and industrial projects
• Balance speed and control for operators
• Offer predictable performance characteristics
• Most commonly specified for general work

Slow-Reacting Formulations:

• Cure in 30-60 minutes allowing flow time
• Enable better flow for large void filling
• Suit deep injection work requiring travel time
• Allow extended working time for adjustments
• Ideal for complex subsurface conditions

Temperature affects reaction rates significantly throughout application. Components heat to 110-130°F before injection for consistency. This ensures consistent performance regardless of ambient weather. Outdoor work continues except in extreme conditions below 20°F.

Conclusion

Polyurethane foam expansion delivers precise concrete lifting through controlled chemical reactions between two-part systems. The material expands 15-20 times original volume within seconds, filling voids while lifting slabs with exceptional accuracy. Industrial applications benefit from rapid 15-30 minute cure times and compressive strengths supporting heavy equipment loads. Understanding foam chemistry, expansion mechanics, and application procedures helps facility managers make informed infrastructure decisions. Professional concrete lifting companies combine advanced materials with proven techniques delivering results traditional methods cannot match for warehouses, airports, and commercial facilities.
