Foam Expansion Control: How Engineers Ensure Precision Void Filling

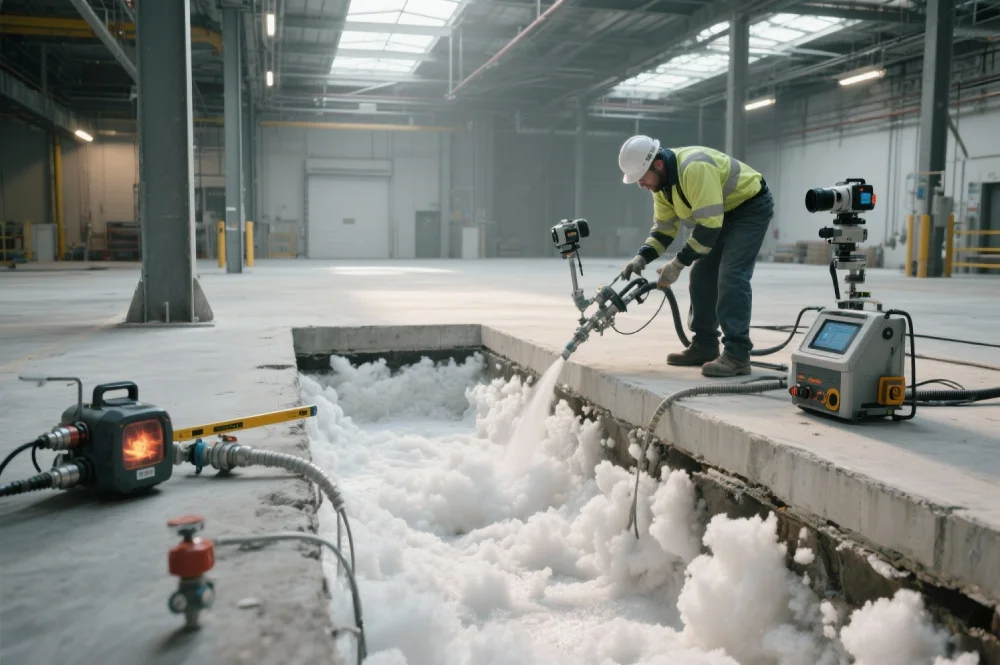

Engineers control foam expansion through real-time pressure monitoring, precise density calculations, strategic injection sequencing, and temperature management to achieve exact void filling without over-expansion or structural damage.

Polyurethane foam injection addresses critical subsurface voids in municipal and industrial infrastructure, but success depends on controlling expansion rates. Uncontrolled foam expansion cracks dam foundations, displaces tunnel linings, or fails to fill voids completely beneath treatment plant structures.

Professional void filling requires engineering controls that manage chemical reactions, predict expansion behavior, and adjust injection parameters in real-time. This analysis examines the technical systems, calculations, and quality protocols that ensure foam fills infrastructure voids precisely without causing structural damage to dams, levees, tunnels, or water treatment facilities.

Key Takeaways

• Real-time pressure monitoring systems measure resistance during expansion, detecting when foam reaches void boundaries and preventing over-pressurization that could crack dam foundations or displace tunnel structural elements
• Engineers calculate foam quantities by determining void volume, required final density (2-6 pounds per cubic foot depending on load requirements), and expansion ratios (15:1 to 40:1) to ensure complete filling in large-scale infrastructure
• Polyurethane foam expansion rates vary with temperature; engineers adjust chemical formulations and injection speeds based on substrate temperatures in underground tunnels, submerged dam structures, and treatment plant foundations
• Large infrastructure void filling requires staged injection sequences with partial foam curing between applications, preventing hydraulic pressure buildup that could fracture concrete in dam spillways or levee structures
• Quality control extracts core samples from filled voids to verify density matches specifications, ensuring structural support capacity meets engineering requirements for critical infrastructure loading conditions
• Advanced proportioning systems measure flow rates, component ratios, and injection pressures continuously, providing data for instant equipment adjustment when expansion behavior deviates from predicted models

Critical Foam Expansion Parameters

Understanding Polyurethane Foam Expansion Mechanics

Polyurethane foam expansion begins when two liquid components—polyol resin and polymeric isocyanate—combine through high-pressure impingement mixing and trigger an exothermic chemical reaction. This reaction generates carbon dioxide gas that creates cellular foam structure while polymer chains cross-link into a rigid matrix.

Critical factors affecting expansion behavior in infrastructure applications:

• Component temperature control: Chemical viscosity and reaction kinetics change with temperature, requiring heated recirculation systems maintaining 70-80°F for consistent expansion in dam foundation work
• Substrate temperature variations: Cold tunnel walls below 50°F slow surface reactions while hot summer conditions above 90°F accelerate premature skinning
• Mixing efficiency standards: High-pressure impingement mixing at 1,200-2,000 psi ensures homogeneous chemical blending preventing density stratification in vertical levee voids
• Void geometry complexity: Confined tunnel spaces create back-pressure restricting expansion differently than open dam foundation voids
• Substrate moisture content: Water reacts with isocyanate accelerating foam generation but potentially compromising structural properties in treatment plant applications

Engineers conduct comprehensive site assessments measuring substrate temperatures in tunnel sections, determining void configurations through ground-penetrating radar or acoustic testing, and selecting foam formulations matched to infrastructure conditions.

The expansion ratio—liquid volume injected versus final foam volume—serves as the primary control parameter. A 20:1 expansion ratio produces twenty cubic feet of foam from one cubic foot of liquid chemicals. Engineers select ratios based on required density: higher ratios create lighter foam for non-structural void filling in utility tunnels, while lower ratios produce denser foam providing load-bearing support for dam foundations and spillway structures.

Calculating Required Foam Quantities for Infrastructure Projects

Precise quantity calculations prevent material waste and incomplete void filling in large infrastructure installations. Engineers determine void volume using ground-penetrating radar surveys of dam foundations, acoustic testing in tunnel sections, or hydraulic pressure testing in levee structures. Calculations include 10-15% contingency factors accounting for void irregularities, concrete porosity, and interconnected void networks.

Required final foam density specifications for infrastructure applications:

• Non-structural tunnel void filling: 2 lb/ft³ density using 30:1-40:1 expansion ratios for utility corridors and cable galleries
• Standard structural support: 3-4 lb/ft³ density using 20:1-30:1 expansion ratios beneath treatment plant equipment pads and clarifier foundations
• Heavy structural applications: 5-6 lb/ft³ density using 15:1-20:1 expansion ratios supporting dam spillway sections or levee foundation cores, providing compressive strengths exceeding 60 psi

The calculation determines liquid volume:

Liquid Volume Required = (Void Volume × Contingency Factor) ÷ Expansion Ratio

For infrastructure applications, filling a 500 cubic foot void beneath a treatment plant clarifier with 18:1 expansion foam using 12% contingency requires 31.1 gallons of liquid polyurethane. Engineers perform zone-by-zone calculations for dam foundation sections, tunnel segments, and levee structures, creating detailed material specifications ensuring adequate supply for project completion.

Pressure Monitoring and Control Systems

Modern polyurethane injection systems incorporate pressure monitoring providing real-time feedback during infrastructure void filling. Pressure transducers measure hydraulic resistance as foam expands into voids beneath dam foundations or within tunnel liner gaps.

Key monitoring parameters tracked by data acquisition systems:

• Injection pressure at proportioning unit outlets: Indicates pump performance and transfer line restrictions affecting foam delivery to remote injection points in large infrastructure sites
• Expansion pressure at injection manifolds: Measures foam resistance against void boundaries, signaling complete filling when pressure rises to predetermined thresholds
• Volumetric flow rate through transfer hoses: Confirms expected foam placement rates and identifies flow anomalies indicating unexpected void configurations
• Exothermic reaction temperature: Monitors foam cure progression and detects excessive heat generation potentially affecting structural properties

Operators establish pressure thresholds before injection based on substrate strength and void configuration. For dam foundation voids, maximum expansion pressure typically remains below 8-12 psi preventing concrete displacement. For tunnel void filling behind structural linings, pressures may reach 15-20 psi without compromising integrity.

Advanced data acquisition systems log complete injection parameters at 2-5 second intervals. Engineers review logged data verifying proper void filling, diagnosing anomalies indicating unexpected void configurations, and providing documentation for infrastructure project quality assurance records. Pressure monitoring detects larger-than-estimated voids—if foam continues flowing at low pressure beyond calculated volumes, operators recognize additional void space exists in interconnected foundation sections and adjust injection quantities maintaining complete filling.

Temperature Management in Infrastructure Applications

Temperature profoundly affects polyurethane foam expansion, making thermal control essential for infrastructure void filling precision. Chemical component temperature directly influences reaction kinetics. Manufacturers specify optimal temperatures (typically 70-80°F) producing rated expansion ratios and working times.

Professional injection equipment thermal management systems:

• Heated transfer hoses: Maintain component temperatures during pumping to remote injection points in dam foundations, preventing viscosity increases that restrict flow
• Temperature sensors at mixing chambers: Monitor actual component temperatures ensuring optimal reaction conditions throughout infrastructure operations
• Automatic viscosity compensation: Adjust pump pressures maintaining proper flow rates regardless of thermal variations in extended tunnel applications
• Heated recirculation systems: Keep stored components at target temperatures during cold weather projects requiring continuous foam placement

Substrate temperature challenges in infrastructure void filling:

Cold concrete in underground tunnels (below 50°F) slows foam expansion at substrate interfaces while foam cores continue expanding normally, creating density gradients and potentially weakening adhesion. Engineers compensate selecting cold-weather polyurethane formulations with modified catalyst systems maintaining reactivity at reduced temperatures, or scheduling operations during warmer periods when tunnel temperatures moderate.

Hot concrete in uncovered summer conditions (above 90°F) accelerates surface reactions causing premature foam skinning that traps unreacted chemicals beneath surface layers. Engineers address hot substrate conditions using slower-reacting formulations with extended cream times, injecting in controlled volume increments allowing heat dissipation between applications, or scheduling operations during cooler morning periods before concrete temperatures peak.

Sequential Injection Protocols for Large Infrastructure Voids

Filling extensive void networks in dam foundations, levee structures, or treatment plant installations requires strategic injection sequencing controlling pressure distribution and ensuring complete filling throughout infrastructure systems.

Sequential injection prevents critical problems in large-scale applications:

• Hydraulic pressure buildup: Single-injection attempts in large voids generate excessive pressure that cracks concrete in dam spillway sections or displaces tunnel structural linings
• Incomplete void penetration: Foam follows least-resistance paths in complex levee foundation geometries, leaving remote sections unfilled without strategic multi-point injection
• Uncontrolled expansion paths: Large foam volumes find weak points in structures and expand through them rather than filling intended void spaces

Engineers develop injection plans dividing large voids into manageable zones, injecting foam in calculated sequences, and allowing partial polymerization between stages. Engineers develop sequences by mapping void geometry and identifying strategic injection locations. Peripheral zones receive foam first, working toward central areas preventing foam from blocking access to remote sections.

Critical waiting periods between injection stages:

• Initial gel phase (3-5 minutes): Foam reaches maximum expansion and begins polymer cross-linking, establishing boundaries for adjacent zone work
• Tack-free phase (8-15 minutes): Foam surface cures sufficiently resisting deformation from subsequent injections in neighboring infrastructure sections
• Partial cure phase (45-90 minutes): Foam achieves sufficient strength providing stable boundaries for next zone injections without pressure interference

Specific timing depends on formulation chemistry, substrate temperature in tunnels or dam structures, and target foam density. For extensive infrastructure projects, multiple injection crews work simultaneously in different foundation sections or tunnel zones. This requires coordination ensuring injection sequences avoid pressure conflicts or forcing foam into unprepared areas.

Density Verification and Quality Control Standards

Confirming injected foam achieved specified density throughout filled infrastructure voids ensures structural performance. Core sampling provides direct verification. After complete polymerization (typically 24-48 hours depending on substrate temperature), technicians extract core samples using rotary diamond drilling at specified locations in dam foundations, tunnel floors, or treatment plant structures.

Laboratory testing procedures for infrastructure quality assurance:

• ASTM D1622 density measurement: Precision weighing of core specimens with known volumes calculating actual achieved density
• Visual cell structure inspection: Examining core samples for uniformity, identifying voids or soft spots indicating incomplete expansion
• ASTM D1621 compressive testing: Verifying structural capacity meets design requirements for infrastructure loading conditions
• Complete void filling verification: Confirming foam extends throughout entire sampled depth without gaps or density stratification

Testing protocols specify sampling frequencies based on infrastructure project scale and criticality. Small projects under 1,000 cubic feet require minimum 5 core samples. Medium projects (1,000-5,000 cubic feet) require samples at 8% of injection points with minimum 8 samples. Large infrastructure projects exceeding 5,000 cubic feet require samples at 5% of injection points with minimum 12 samples. Critical dam foundation or levee projects require additional sampling at all high-load transfer zones regardless of project size.

Alternative verification methods for infrastructure applications:

Nuclear density gauge testing offers non-destructive verification using backscatter radiation measuring in-place density without core extraction. Ground-penetrating radar conducted post-injection compares results to pre-injection void mapping, with uniform radar signatures indicating consistent foam density throughout infrastructure foundations.

Engineers establish acceptance criteria requiring average density within ±8% of specified target, individual test results within ±12% of target, and zero readings below minimum acceptable density (typically 90% of target for critical infrastructure). Failed results trigger remedial procedures including supplemental foam injection through new access points drilled into deficient zones, with quantities calculated based on density deficiencies and affected volumes.

Common Expansion Control Challenges in Infrastructure Projects

Cold weather infrastructure projects create expansion control difficulties. Polyurethane reactions slow significantly below 45°F, extending working times but potentially preventing complete cure before overnight temperature drops. Solutions include cold-weather formulations with modified catalyst packages maintaining reactivity below 40°F, substrate pre-warming using diesel-fired heaters or steam injection raising concrete temperatures above 55°F, temporary environmental enclosures maintaining minimum 50°F ambient temperatures, and scheduling critical operations during peak daily temperatures with extended cure monitoring.

Hot weather conditions in uncovered dam or levee structures accelerate reactions causing rapid foam setting. Engineers select extended cream-time formulations providing 45-60 second working windows, implement component cooling to 62-68°F compensating for hot concrete substrates, inject in reduced volume increments (25% of zone capacity) with cooling intervals, and schedule operations during early morning hours before concrete surface temperatures exceed 85°F.

Engineering Standards and Specifications

Infrastructure void filling follows established standards ensuring expansion control, quality assurance, and structural performance.

Critical standards governing infrastructure polyurethane foam applications:

• ACI 552.2R guidelines: Provide polyurethane foam property recommendations, injection procedures for infrastructure applications, and quality verification protocols for dam and treatment plant foundations
• ASTM D1622 methodology: Establishes precision density measurement procedures using core specimens for infrastructure quality documentation
• ASTM D1621 testing: Determines compressive properties at specified deformation percentages correlating to infrastructure loading conditions
• ASTM D2126 evaluation: Measures adhesion strength between polyurethane foam and concrete substrates in dam or tunnel applications
• ASTM C518 thermal testing: Assesses thermal properties relevant to freeze-thaw performance in infrastructure installations

Project specifications reference specific ASTM methodologies establishing acceptance criteria. Infrastructure projects typically specify minimum compressive strength of 50-80 psi at 10% deformation per ASTM D1621 for structural void filling, minimum adhesion strength of 30 psi per ASTM D2126 for dam foundation applications, and target density of 4-6 lb/ft³ per ASTM D1622 for high-load infrastructure support.

Manufacturer technical data provides formulation-specific parameters engineers use for expansion calculations. Data sheets specify optimal component temperature ranges, recommended proportioning equipment operating pressures (typically 1,200-2,000 psi for high-pressure impingement mixing), expected cure schedules at various substrate temperatures, and compressive strengths at different densities and cure durations.

Industry protocols for infrastructure project quality assurance:

• Pre-injection testing: Trial injections in representative void conditions verify actual expansion matches predictions before production operations commence
• Progressive injection: Fill infrastructure voids in 25-30% volume increments with pressure and temperature monitoring between stages
• Multiple injection access points: Establish injection locations at 10-12 foot spacing ensuring foam reaches all sections of complex dam foundation or levee void networks
• Extended monitoring: Continue pressure and temperature tracking 20-30 minutes post-injection detecting delayed expansion or temperature excursions
• Comprehensive documentation: Photograph injection sites before operations, during foam placement showing access point locations, and after completion showing surface conditions

Conclusion

Precision void filling in critical infrastructure depends on engineering systems controlling polyurethane foam expansion. Modern proportioning equipment and data acquisition systems provide real-time monitoring enabling instant response to deviation from predicted expansion behavior in dam foundations, tunnel structures, and treatment plant installations.

Sequential injection protocols manage extensive void networks in levee structures and spillway foundations by limiting hydraulic pressure accumulation and verifying complete filling in each zone before advancing. Temperature management systems maintain predictable expansion regardless of seasonal conditions affecting underground tunnel environments or exposed dam structures.

Quality verification through core sampling per ASTM D1622, nuclear density testing, and ground-penetrating radar confirmation ensures completed infrastructure installations meet structural performance specifications. Professional contractors combine advanced proportioning technology, comprehensive operator certification programs, and systematic quality protocols delivering precision void filling supporting critical municipal and industrial infrastructure.For expert void filling services in critical infrastructure applications, contact Superior PolyLift.
