Can Polyurethane Void Filling Stop Sinkholes and Soil Washouts?

Polyurethane void filling effectively prevents sinkholes and soil washouts when applied before catastrophic failure occurs by filling subsurface voids, stabilizing soil masses, and creating impermeable barriers that stop water migration causing erosion.

Municipal infrastructure managers face critical decisions when subsurface voids threaten roads, treatment plants, and dam structures. Traditional methods including excavation and grouting require extended facility shutdowns and offer limited access to deep or complex void systems. Polyurethane void filling technology provides rapid stabilization filling voids from 5 to 50+ feet deep, creating structural support and water cutoff barriers preventing progressive soil loss.

This technical analysis examines polyurethane effectiveness for sinkhole prevention, application methodologies for different void formation mechanisms, case study results from municipal infrastructure projects, and limitations requiring alternative approaches for optimal infrastructure protection.

Key Takeaways

• Polyurethane void filling prevents sinkhole formation by filling subsurface voids before surface collapse occurs, expanding through soil matrices to fill cavities from eroded pipe bedding, karst limestone dissolution, or groundwater erosion
• The material creates impermeable barriers stopping water migration that causes progressive soil washout, with hydrophobic polymer structure resisting water infiltration and maintaining void filling integrity in saturated conditions
• Application effectiveness depends on early intervention before catastrophic collapse; polyurethane stabilizes developing sinkholes showing surface depressions or subsidence but cannot repair large established sinkholes requiring excavation and structural reconstruction
• Installation methods vary by void depth and access, using direct injection for shallow voids under 15 feet, deep injection with drill-and-grout techniques for voids 15-50 feet deep, and multiple injection points for extensive void networks beneath infrastructure
• Polyurethane compressive strength of 60-80 psi and expansion ratios of 15:1-25:1 provide structural soil support preventing collapse while filling irregular void geometries that cementitious grouts cannot penetrate effectively
• Municipal case studies demonstrate successful sinkhole prevention in treatment plant sites, roadway applications, and dam foundations where polyurethane stabilized developing voids preventing infrastructure damage and costly emergency repairs

Sinkhole Formation Mechanisms and Prevention Strategies

Understanding Void Formation and Progressive Failure

Sinkholes and soil washouts develop through progressive subsurface void formation rarely visible from surface until failure becomes imminent. Understanding formation mechanisms enables effective polyurethane application preventing catastrophic collapse.

Subsurface void formation processes in infrastructure applications:

• Pipe bedding erosion: Water/sewer line leaks erode surrounding soil creating expanding cavities; material migrates into pipes through cracks leaving voids that grow until surface collapses into cavity
• Karst limestone dissolution: Acidic groundwater dissolves limestone bedrock creating cavities; overlying soil bridges cavity until void grows too large supporting soil weight triggering sudden collapse
• Groundwater erosion: Subsurface water flow removes fine soil particles through coarser material creating piping channels; progressive erosion enlarges channels into cavities threatening infrastructure stability
• Construction backfill consolidation: Inadequately compacted backfill around utilities or structures consolidates over time creating voids between settled material and infrastructure
• Freeze-thaw soil displacement: Repeated freezing and thawing in northern climates can create voids through frost heave displacement and settlement cycles

Early detection proves critical for effective polyurethane intervention. Surface indicators suggesting subsidence void development include circular depressions, differential settlement of pavement or structures, new cracking patterns radiating from depression centers, ponding in previously well-drained areas, and visible soil movement into storm drain or utility openings.

Geophysical investigation methods identify subsurface voids before surface collapse:

Ground-penetrating radar surveys detect subsurface density anomalies indicating void spaces beneath infrastructure. Surveys conducted along roadways, around treatment plant structures, or across dam sites identify void locations requiring stabilization. Resolution allows void detection from 2 feet to 30+ feet depth depending on soil conditions and equipment specifications.

Electrical resistivity testing measures subsurface electrical conductivity variations caused by voids, moisture changes, or soil density differences. Testing arrays deployed across suspected problem areas identify void networks requiring polyurethane treatment before surface collapse occurs.

Cone penetrometer testing measures soil resistance during probe penetration identifying loose or void zones. Testing at strategic locations around infrastructure provides vertical void profile data guiding injection depth and foam quantity calculations.

Polyurethane Properties Enabling Sinkhole Prevention

Polyurethane void filling provides unique properties making it effective for sinkhole prevention and soil washout stabilization compared to traditional methods.

Critical material properties for subsidence control:

• Expansion capability: Polyurethane expands 15-25 times liquid volume during injection, forcing material into complex void geometries and soil interstices that gravity-dependent grouts cannot reach effectively
• Low injection pressure: Expansion occurs at 5-15 psi preventing soil displacement or infrastructure damage during treatment; cementitious grouting requires higher pressures risking additional ground disturbance
• Rapid cure time: Polyurethane achieves structural strength within 15-30 minutes enabling immediate load bearing; fast cure prevents material migration before strength development in unstable soil conditions
• Compressive strength: Cured foam provides 60-80 psi compressive capacity supporting soil overburden and infrastructure loads preventing renewed void collapse after treatment
• Water resistance: Closed-cell structure (92-95% closed cells) creates impermeable mass blocking water migration paths that caused original erosion; prevents continued washout after void filling
• Soil penetration: Low-viscosity liquid components penetrate porous soil before expansion, improving soil-foam bonding and increasing stabilization volume beyond injected foam mass alone

Chemical reaction control enables precise application. Two-component polyurethane systems allow reaction time adjustment from 15 seconds to 60 seconds matching specific application requirements. Fast reaction times suit shallow void filling preventing material loss into deep cavities. Slower reactions enable material flow into extensive void networks before expansion restricts continued penetration.

Hydrophobic polymer structure provides permanent water resistance critical for preventing renewed erosion. Unlike cementitious materials that can erode under flowing water conditions, polyurethane maintains integrity in saturated environments. This property proves essential for stabilizing washout cavities caused by groundwater flow or stormwater infiltration.

Application Methods for Different Void Configurations

Polyurethane injection methodology varies based on void depth, extent, and formation mechanism requiring different equipment and procedures for optimal results.

Shallow Void Filling (Depths Under 15 Feet)

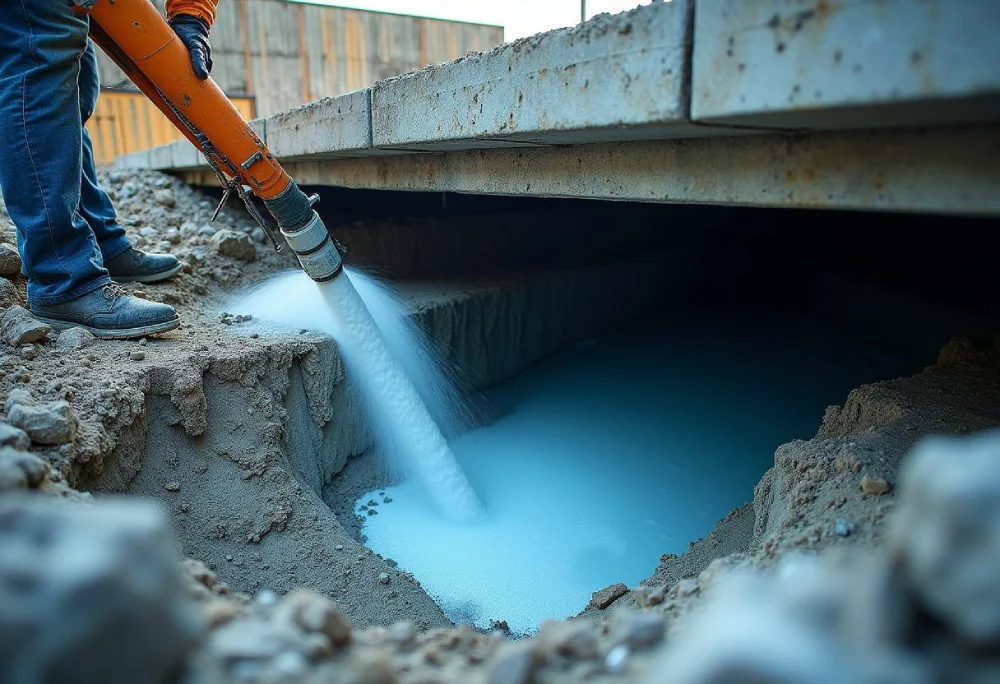

Direct injection through driven probes accesses voids beneath roadways, parking areas, or light structures. Operators advance 5/8-inch to 1-inch diameter steel probes to void depth using manual or hydraulic pressure. Polyurethane injects through probe displacing water and filling voids. Multiple injection points at 6-10 foot spacing ensure complete void filling throughout affected area.

Injection proceeds systematically starting at void perimeter working toward center preventing foam escape through surface entry point. Operators monitor injection pressure and foam appearance at adjacent probes or surface cracks indicating interconnected void network. Typical shallow applications inject 2-8 gallons per location achieving void filling and soil stabilization preventing surface collapse.

Deep Void Filling (Depths 15-50 Feet)

Rotary drilling establishes injection access to deep voids beneath treatment plant structures, dam foundations, or roadway embankments. Drilling uses 2-4 inch diameter augers or percussion methods depending on soil conditions. Drill logs document soil stratigraphy identifying void zones requiring treatment.

Temporary casing installed in drill holes prevents collapse during injection operations. Injection tubes extend to void depth enabling precise foam placement. Deep applications require careful pressure monitoring preventing soil displacement or hydrofracturing. Injection quantities range from 20-100+ gallons per location depending on void size and required stabilization volume.

Stage Grouting for Extensive Void Networks

Stage grouting treats extensive void networks or cavities exceeding single-injection capacity through systematic procedures:

• Initial perimeter treatment: Establish foam barriers around void perimeter preventing material loss into unmapped cavity extensions
• Progressive void filling: Inject foam working from void bottom upward in 10-15 foot lifts allowing partial cure between stages preventing excessive hydraulic pressure
• Verification grouting: Additional injections at intermediate locations fill any remaining voids missed during primary treatment ensuring complete stabilization

Multiple Injection Arrays for Infrastructure Sites

Treatment plant sites or roadway sections with extensive subsidence require systematic injection arrays. Engineers establish grid patterns with 8-12 foot spacing covering affected areas. Ground-penetrating radar or test drilling identifies specific void locations requiring treatment. Injection proceeds following predetermined sequence filling voids systematically preventing material loss into untreated sections.

Foam volumes vary significantly based on void extent. Small isolated voids may require 10-30 gallons total across multiple injection points. Extensive washout cavities beneath treatment plant clarifiers or roadway sections may require 200-500+ gallons achieving complete void filling and soil stabilization.

Material Specifications for Sinkhole Stabilization

Limitations and Situations Requiring Alternative Methods

Polyurethane void filling provides effective sinkhole prevention in many applications but faces limitations in specific conditions requiring alternative or supplemental approaches.

Large Established Sinkholes

Large established sinkholes with surface collapse already occurred typically require excavation and structural reconstruction. Once cavity dimensions exceed approximately 15-20 feet diameter and depth, polyurethane volume requirements become economically prohibitive compared to excavation. Additionally, collapsed material within cavity may prevent foam penetration to void perimeter requiring removal before effective stabilization.

Active Flowing Water Conditions

Active flowing water conditions exceeding 5-10 gallons per minute can wash away foam before cure occurs. Polyurethane requires 30-60 seconds reaction time before expansion begins. High-flow conditions carry material away before adequate strength develops. Applications with active water flow require flow reduction through pumping or diversion before polyurethane injection succeeds.

Very Deep Void Access

Very deep voids exceeding 50-60 feet depth present access challenges. Drilling costs increase substantially for deep access, and foam placement at extreme depths becomes difficult ensuring complete void filling. Deep applications may require specialized grouting methods using cement-based materials or chemical grouts designed for high-pressure deep injection.

Ongoing Dissolution in Active Karst

Ongoing dissolution in active karst terrain or evaporite deposits continues creating new voids after polyurethane treatment. While polyurethane fills existing cavities effectively, it cannot prevent continued bedrock dissolution from groundwater flow. Long-term stability requires groundwater control preventing water contact with soluble formations.

Contaminated Soil Environments

Contaminated soil environments require careful material selection and may limit polyurethane effectiveness:

• Petroleum contamination: Standard polyurethane formulations may not achieve proper cure in soil heavily contaminated with petroleum products; specialty formulations or soil remediation required before foam injection
• High organic content: Organic acids in peat or highly organic soils can interfere with polyurethane cure; testing required verifying compatibility before full-scale application
• Extreme pH conditions: Soil pH below 4 or above 11 may affect foam properties requiring neutralization or specialty formulations

Regulatory Restrictions

Regulatory restrictions in some jurisdictions limit polyurethane injection near drinking water supplies or environmentally sensitive areas. Material safety data and environmental impact assessments may be required for projects near water supply wells or protected water bodies.

Engineering Design Considerations for Sinkhole Prevention

Effective polyurethane application for sinkhole prevention requires engineering analysis addressing site-specific conditions and treatment objectives.

Site Investigation Requirements

Site investigation establishes treatment design parameters through comprehensive subsurface assessment:

• Void location mapping: Ground-penetrating radar surveys or test drilling identify void locations, depths, and approximate volumes requiring treatment
• Soil characterization: Geotechnical boring logs define soil types, strength properties, and permeability affecting foam penetration and required injection pressures
• Water condition assessment: Monitoring wells or piezometers measure groundwater levels and identify active seepage contributing to void formation
• Structural loading analysis: Calculate loads from overlying infrastructure determining required foam density and compressive strength for adequate support
• Access limitations: Identify constraints including overhead clearances, site access restrictions, or sensitive adjacent facilities affecting equipment selection

Treatment Design Parameters

Foam density selection balances structural capacity against cost considerations. Low-density foam (2-3 lb/ft³) using 25:1-30:1 expansion ratios provides void filling with minimal structural support suitable for non-load-bearing applications. Medium-density foam (4-5 lb/ft³) using 18:1-22:1 ratios provides moderate structural support for roadway subgrades or light structural loads. High-density foam (6-8 lb/ft³) using 15:1-18:1 ratios delivers maximum compressive strength for heavy infrastructure loads requiring 60-80 psi capacity.

Injection point spacing depends on void extent and soil permeability. Tight soils with low permeability require closer spacing (6-8 feet) ensuring complete void filling. Granular soils allowing greater foam penetration enable wider spacing (10-12 feet) reducing injection points and installation costs.

Injection sequence prevents material loss into unmapped void extensions. Perimeter injections establish foam barriers confining subsequent interior injections. Bottom-up injection in deep voids prevents foam rise leaving unfilled lower sections. Systematic grid coverage ensures no void sections escape treatment.

Quality Control Verification

Post-injection ground-penetrating radar surveys compare results to pre-treatment scans verifying void filling completeness. Uniform subsurface signatures indicate successful treatment. Remaining anomalies identify areas requiring supplemental injection achieving complete stabilization.

Core sampling at selected locations provides direct verification of foam placement and achieved density. Cores extracted through infrastructure or from test boring locations undergo laboratory analysis per ASTM D1622 confirming density meets specifications.

Performance monitoring tracks surface elevations at benchmarks across treated areas. Stable readings over 30-90 day monitoring period confirm successful void filling preventing continued settlement. Any elevation changes trigger investigation and potential supplemental treatment.

Integration with Drainage and Erosion Control

Polyurethane void filling provides immediate stabilization but long-term success requires addressing water sources causing original void formation.

Drainage Improvements

Drainage improvements prevent renewed void development through systematic water control:

Surface drainage corrections direct water away from treated areas preventing infiltration to subsurface. Improved site grading, installation of collection systems, and sealed pavement joints reduce water entry. Treatment plant sites receive perimeter drainage intercepting runoff before reaching stabilized areas.

Subsurface drainage systems remove groundwater preventing continued erosion. Underdrain installations beneath treated roadway or structure areas lower water tables eliminating hydrostatic pressure and seepage flow. Drainage blankets placed during construction or installed through directional drilling provide permanent groundwater control.

Utility leak repairs address water sources from infrastructure failures. Water/sewer line inspection identifies leaks requiring repair before void filling stabilization. Trenchless repair methods including pipe bursting or cured-in-place pipe lining repair utilities without excavation minimizing additional soil disturbance.

Erosion Control Measures

Erosion control measures protect treated areas from surface and subsurface water movement:

• Geotextile installations: Filter fabrics prevent soil particle migration while allowing water drainage in areas with continued seepage risk
• Riprap or erosion control mats: Protect surface areas from concentrated flow or wave action in dam or levee applications
• Vegetation establishment: Root systems stabilize soil and reduce erosion in embankment or slope applications following polyurethane treatment
• Impermeable barriers: Geomembrane liners or concrete surface treatments prevent water infiltration in critical areas where drainage alone proves insufficient

Integrated Stabilization Approach

Integrated approach combining polyurethane stabilization with drainage and erosion control provides long-term infrastructure protection. Polyurethane addresses existing voids and prevents immediate collapse. Drainage improvements eliminate water sources preventing new void formation. Combined approach delivers durable solution protecting infrastructure for decades.

Cost Analysis: Polyurethane Versus Alternative Methods

Economic analysis for typical sinkhole prevention project:

Treatment plant subsidence repair case: Developing void beneath clarifier structure 12 feet diameter, 15 feet average depth. Estimated void volume 1,700 cubic feet (63 cubic yards).

Polyurethane solution: 280 gallons material ($4,200), equipment and labor ($8,500), engineering and testing ($3,500). Total project cost: $16,200. Installation time: 2 days. No facility shutdown required. Expected service life: 30+ years with drainage improvements.

Excavation alternative: Excavation and disposal (contaminated wastewater contact) ($45,000), engineered fill and compaction ($18,000), clarifier support during excavation ($25,000), restoration ($12,000). Total project cost: $100,000. Installation time: 3-4 weeks. Facility shutdown required. Service life: 40+ years.

Cost comparison: Polyurethane provides 85% cost savings and 90% time savings compared to excavation while delivering adequate long-term performance. Avoided facility shutdown eliminates additional costs from treatment disruption making polyurethane economically optimal for this application.

Conclusion

Polyurethane void filling effectively prevents sinkholes and soil washouts when applied during early development stages before catastrophic surface collapse occurs. The material's expansion capability, rapid cure time, structural capacity, and water resistance provide unique advantages for infrastructure stabilization compared to traditional methods.

Effectiveness depends on proper application addressing site-specific conditions including void depth and configuration, soil properties, water conditions, and loading requirements. Integration with drainage improvements and erosion control measures ensures long-term stability preventing renewed void formation after polyurethane treatment.

Case studies from municipal infrastructure projects demonstrate successful sinkhole prevention in treatment plants, roadways, dam structures, and levee systems. Polyurethane provided rapid stabilization minimizing facility disruption while delivering long-term performance at substantially lower cost than excavation alternatives. However, limitations exist for large established sinkholes, active high-flow water conditions, and very deep applications requiring alternative methods for optimal results.For expert void filling services preventing infrastructure sinkholes, contact Superior PolyLift.
